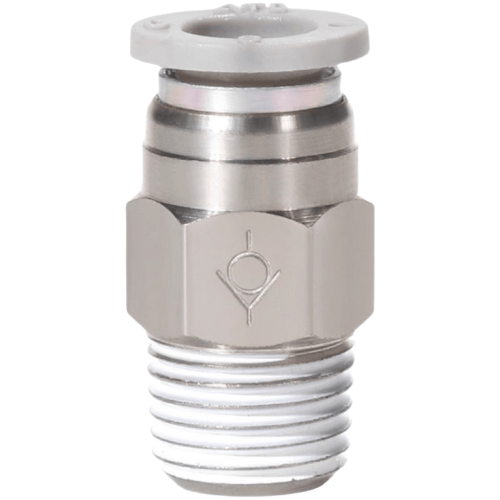

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1002
AirTAC X-APCVC1002 Straight-Through One-Way Fitting Specifications
- Model: X-APCVC1002
- Type: Straight-through type, one-way flow
- Thread standard: G1/8 (ISO228-1 compliant)
- Material: Brass with nickel plating (CuZn39Pb3)
- Seal material: NBR (Nitrile rubber)
- Operating pressure: 0.3-1.5 MPa
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Temperature range: -5℃ to 80℃
- Flow coefficient (Cv): 0.22
- Weight: 52g ±2g
- Dimensions: 32mm(L) × 15mm(Diameter) × 15mm(Height)
- Surface roughness: Ra ≤1.6μm
- Corrosion resistance: 96hrs neutral salt spray test passed
- Compliance: RoHS compliant
Precision-engineered straight-through check valve featuring low cracking pressure (0.02MPa) and bubble-tight sealing. The chrome-plated brass construction ensures durability in humid environments, while the spring-loaded poppet design prevents backflow with ≤0.1ms response time. Compatible with ISO 8573-1:2010 Class 3 compressed air.
- Pneumatic circuit protection in CNC machines
- Air compressor return line safety systems
- Vacuum generator isolation in packaging equipment
- Medical gas line backflow prevention
- Robotic actuator pressure maintenance circuits
Installation guidelines:
Install with flow arrow aligned to system direction. Apply 4-6Nm torque during assembly.
Use PTFE tape on male threads only, leaving 1.5-2 thread pitches uncovered. For vertical
installations, position spring chamber downward to prevent debris accumulation.
