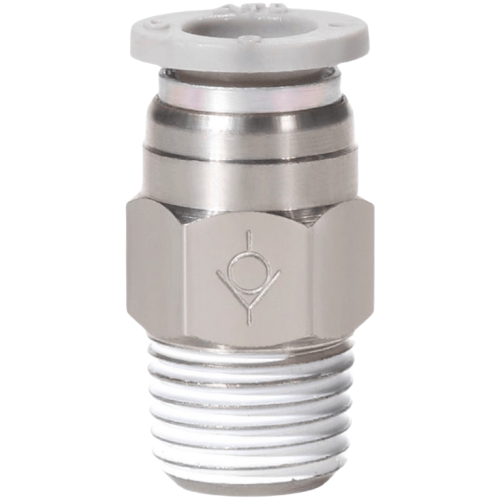

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1003
$7.10
Regular price
$14.60
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCVC1003
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCVC1003 Straight-Through One-Way Fitting Technical Details
- Model: X-APCVC1003
- Type: Inline check valve (non-return)
- Thread standard: PT1/8 (BSPP)
- Material: Brass with nickel plating
- Seal material: NBR rubber
- Max working pressure: 1.5 MPa
- Min burst pressure: 5.0 MPa
- Operating temperature: -20℃ to 80℃
- Cracking pressure: 0.02 MPa
- Flow capacity: 350 L/min (ANR)
- Weight: 25g ±1g
- Dimensions: 25mm(L) × 15mm(Dia) × 15mm(port spacing)
- Surface treatment: Electroless nickel plating (5-8μm)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-engineered check valve featuring low cracking pressure and high flow efficiency. The chrome-plated brass construction ensures corrosion resistance in humid environments. Integrated O-ring groove allows direct manifold mounting without additional seals.
Primary Applications:
- Pneumatic cylinder exhaust locking systems
- Vacuum generator circuit protection
- Air compressor outlet anti-backflow units
- Automated assembly line tooling circuits
- Medical gas delivery systems
Installation guidelines:
Arrow direction must align with flow requirements. Apply 3-4Nm torque during installation.
Use thread sealant only on male threads - avoid contamination of internal check mechanism.
Recommended replacement interval: 5 million cycles or 2 years.
| Property | Property Value |
|---|---|
| sku | X-APCVC1003 |
