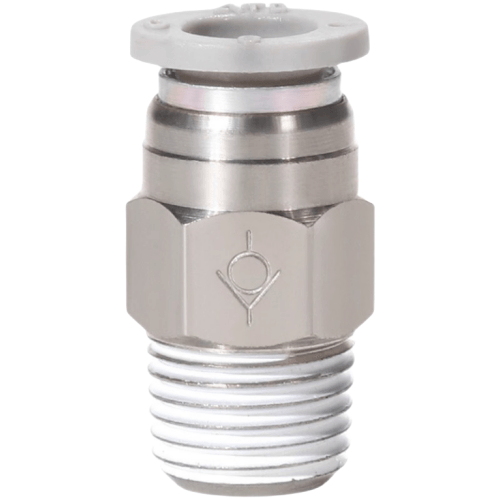

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1004
$9.47
Regular price
$16.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCVC1004
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCVC1004 Straight-Through One-Way Joint Technical Details
- Model: X-APCVC1004
- Type: In-line check valve (non-return)
- Thread standard: G1/4 (BSPP)
- Max working pressure: 1.5 MPa
- Proof pressure: 2.25 MPa
- Burst pressure: 3.0 MPa
- Operating temperature: -5℃ to 80℃
- Cracking pressure: 0.015 MPa
- Flow capacity: 300 L/min (ANR)
- Material: Nickel-plated brass body
- Seal material: HNBR rubber
- Weight: 185g ±5g
- Dimensions: 62mm(L) × 28mm(W) × 28mm(H)
- Port orientation: Straight-through design
- Viscosity range: ≤50 cSt
- Fluid compatibility: Air, inert gases
High-flow check valve with precision-machined brass construction and directional arrow marking. Features low cracking pressure for sensitive systems and integrated O-ring groove for leak-proof installation. Meets ISO 228-1 standard for thread dimensions.
Typical Applications:
- Pneumatic cylinder exhaust circuits
- Air compressor line protection
- Vacuum system backflow prevention
- CNC machine tool pneumatic lines
- Automated assembly line actuators
Installation guidelines:
Install with flow direction matching body arrow marking. Use 20-25 N·m torque
with compatible sealant tape. Avoid side-loading during tube connection.
Perform pressure test at 110% max working pressure after installation.
Maintenance:
Inspect HNBR seals every 2,000 operating hours. Replace immediately if
cracking pressure exceeds 0.025 MPa during functional testing.
| Property | Property Value |
|---|---|
| sku | X-APCVC1004 |
