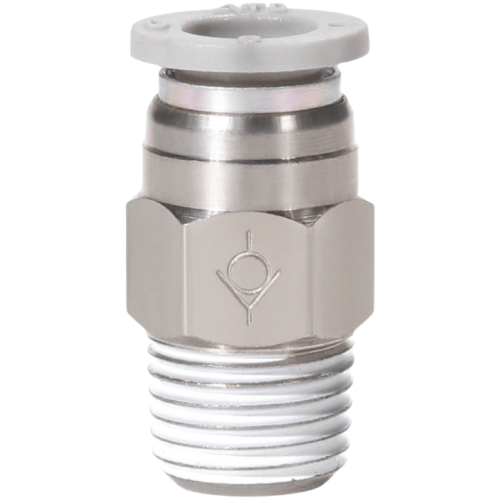

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1202
AirTAC X-APCVC1202 Straight-Through One-Way Fitting Specifications
- Model: X-APCVC1202
- Type: Straight-through type, one-way check valve
- Thread specification: 1/8" BSPP (G1/8)
- Material: Brass body with NBR seals
- Operating pressure: 0.05-1.0 MPa (7-145 PSI)
- Max flow rate: 500 L/min (ANR)
- Cracking pressure: 0.01 MPa (1.45 PSI)
- Temperature range: -5℃ to 80℃ (23℉ to 176℉)
- Weight: 48g ±2g
- Dimensions: 20mm(D) × 20mm(W) × 30mm(H)
- Port orientation: Axial flow design
- Viscosity range: ≤50 cSt
- Certification: RoHS compliant
Precision-engineered one-way valve featuring low cracking pressure and minimal pressure drop. The chrome-plated brass construction ensures corrosion resistance in humid environments. Integrated O-ring provides bubble-tight sealing up to 1MPa. Compatible with air, inert gases, and light hydraulic fluids.
- Pneumatic cylinder exhaust port protection
- Vacuum system backflow prevention
- Air compressor loop circuits
- Medical gas line safety valves
- 3D printer pneumatic subsystems
- Hydraulic test bench instrumentation
Installation note:
Arrow markings indicate flow direction - install with arrow pointing toward desired flow path.
Use thread sealant on male threads only. Max torque 12N·m. Test with 0.3MPa air pressure
before system integration.
| Property | Property Value |
|---|---|
| sku | X-APCVC1202 |
