Airtac X-APCVC Straight Check Valve Adapter X-APCVC801
$5.34
Regular price
$12.84
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCVC801
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

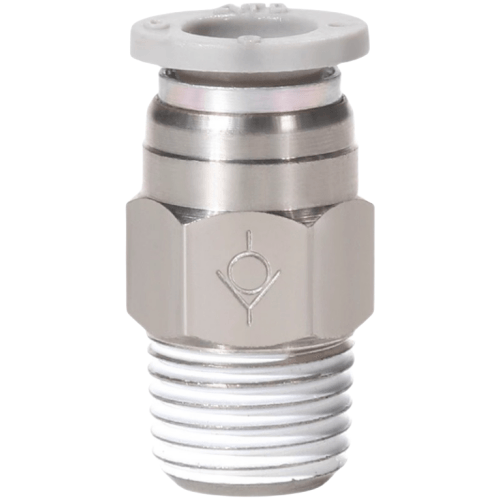

AirTAC X-APCVC801 Straight-Through One-Way Fitting Specifications
- Model: X-APCVC801
- Type: Straight-through unidirectional quick connector
- Material: Brass with nickel plating (corrosion-resistant surface)
- Thread standard: Metric M5×0.8 male thread
- Operating pressure: 0.05–1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile) / Optional FKM (Fluorocarbon)
- Flow rate: 250 L/min (at 0.5 MPa)
- Weight: 18.5g ±0.5g
- Dimensions: 20mm(L) × 8mm(Dia) × 8mm(Passage Ø)
- Surface roughness: Ra0.8μm (internal channel)
- Vibration resistance: 10–1500Hz (IEC 60068-2-6)
- Protection class: IP40 (standard sealing)
Precision-engineered leak-proof connector featuring zero-pressure-loss design with 15° conical sealing surface. The electro-galvanized brass body ensures 50,000+ mating cycles. Includes integrated dust cap with retention chain. Compatible with PU/Nylon tubing (Ø4mm–Ø6mm).
Typical Applications:
- Pneumatic cylinder exhaust port connections
- Modular automation equipment manifolds
- Medical device gas line interfaces
- Packaging machine tooling quick-change systems
- Semiconductor wafer handling robots
Installation protocol:
Apply 0.3–0.6Nm torque during assembly. Lubricate threads with PTFE paste (DO NOT use silicone-based compounds).
Perform air-tightness test at 0.8MPa for 3 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | X-APCVC801 |
