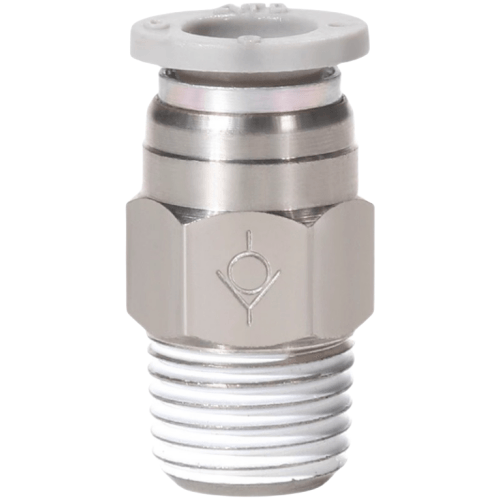

Airtac X-APCVC Straight Check Valve Adapter X-APCVC803
AirTAC X-APCVC803 Straight-Through One-Way Fitting Specifications
- Model: X-APCVC803
- Type: Inline check valve (uni-directional flow control)
- Port configuration: 1/4" BSPP female threads (G1/4 equivalent)
- Material: CNC-machined stainless steel body
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE backup ring
- Cracking pressure: 0.03 MPa (minimum opening pressure)
- Max working pressure: 1.5 MPa
- Temperature range: -30℃ to 120℃ (with intermittent peaks to 150℃)
- Flow capacity: 300 NL/min at 0.7 MPa
- Leakage rate: <5 bubbles/min per ISO 6952-3
- Weight: 85g ±2g (including packaging)
- Dimensions: 30mm (L) × 18mm (W) × 18mm (H)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Vibration resistance: 10-2000Hz, 15G acceleration
Precision-engineered anti-backflow component featuring zero-leak poppet design with spring-assisted closure. The 45° angled seat geometry ensures rapid response (≤3ms closure time) while minimizing pressure drop. Includes integrated particulate shield to prevent seal contamination.
- Pneumatic cylinder exhaust line protection
- Vacuum system pressure maintenance
- Multi-circuit air supply isolation
- Medical gas delivery systems
- Robotic tooling quick-disconnect stations
Installation protocol:
Arrow marking indicates flow direction - must align with system's working flow.
Apply 2-3 wraps of PTFE tape on male threads using clockwise winding.
Torque specification: 12-15 N·m (do not exceed 18 N·m).
Maintenance note: Replace immediately if bubble test shows >10 bubbles/min leakage. Compatible with ISO 8573-1 Class 3.4.2 compressed air quality. Not recommended for pulsating flows above 15Hz or corrosive media.
| Property | Property Value |
|---|---|
| sku | X-APCVC803 |
