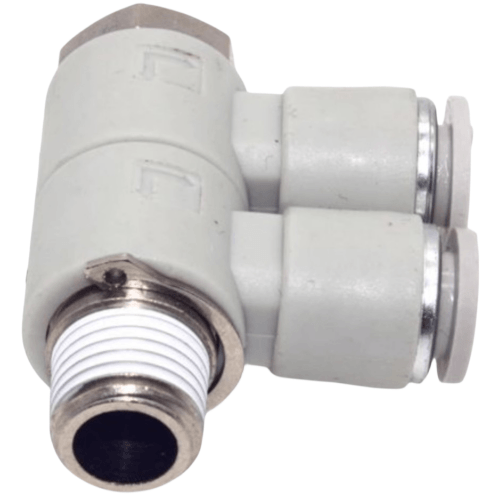

Airtac X-APHW Connector - Female Thread Swivel Tee X-APHW1204
AirTAC X-APHW F-Type Threaded Swivel Tee X-APHW1204 Technical Details
- Model: X-APHW1204
- Type: F-type threaded 3-way swivel connector
- Thread standard: Metric fine thread (M)
- Thread size: M12 × 1.0 (male thread on all ports)
- Port configuration: 1 input / 2 output (T-shaped flow path)
- Material: Nickel-plated brass body, EPDM seals
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Torque resistance: ≤30 N·m during rotation adjustment
- Surface treatment: Electrostatic powder coating (black)
- Weight: 48g ±2g
- Dimensions: 34mm(L) × 28mm(W) × 28mm(H) (body only)
- Effective length: 52mm (including full thread engagement)
- Flow coefficient (Cv): 0.45
- Vibration resistance: 10-55Hz, 1.5mm amplitude
A precision-engineered rotary joint tee featuring 340° swivel capability for flexible piping alignment. The triple-sealed rotating interface maintains leak-free performance under dynamic movement, with anti-vibration grooves enhancing connection stability. Compatible with air, inert gases, and vacuum systems.
- Multi-axis robotic arm pneumatic tooling
- Rotary union connections in packaging machinery
- Modular pneumatic circuit prototyping
- Servo-controlled clamping systems
- CNC machine tool coolant line distribution
Installation guidance:
Hand-tighten initially, then apply 18-22 N·m torque using a crowfoot wrench.
Align flow arrows with primary direction. Perform rotational adjustment
BEFORE pressurization. Lubricate threads with PTFE paste (not included).
