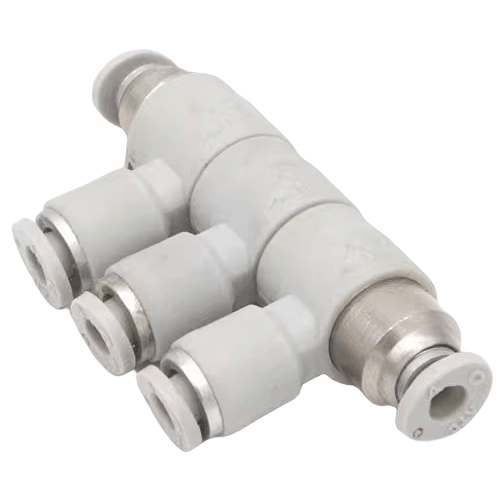

Airtac X-APKS Swivel Adjustable 5-Way Adapter X-APKS4
$11.85
Regular price
$19.35
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APKS4
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APKS4 Swivel Five-Way Connector Specifications
- Model: X-APKS4
- Type: Rotatable multi-port manifold with 5-way switching
- Body material: Nickel-plated brass (corrosion-resistant)
- Port configuration: 1P-2A-2B-2R (ISO 5599-1 compliant)
- Thread size: G1/8 (NPT1/8 optional)
- Max rotation angle: 360° continuous swivel
- Operating temperature: -20℃ to 80℃
- Pressure range: 0-1.0 MPa (0-145 PSI)
- Torque resistance: ≤3 N·m (mounting torque limit)
- Leakage rate: <0.1 NL/min under 0.5 MPa
- Weight: 85g ±2g
- Dimensions: 40mm(L) × 40mm(W) × 30mm(H)
- Certification: RoHS compliant
Modular pneumatic distribution block featuring 360° rotatable ports for flexible piping alignment. Precision-machined sealing surfaces with double O-ring design (NBR material) prevent air leakage during rotation. Compatible with ISO 15407-1 standard actuators.
Key Applications:
- Multi-cylinder pneumatic circuit distribution
- Robotic arm tool changers requiring rotational freedom
- Compact automation cells with space constraints
- Plastic injection molding machine air routing
- Test bench manifold systems
Installation guidelines:
Use 1.5-2.0 N·m torque for port connections. Rotate ports before final tightening.
Apply silicone-free lubricant to O-rings during maintenance. Avoid overtightening -
maximum 3 full rotations after contact with sealing surface.
Works with:
- 4V/5V series solenoid valves
- ∅6mm & ∅8mm push-in fittings
- Standard 1/8" NPT/PVDF tubing
| Property | Property Value |
|---|---|
| sku | X-APKS4 |
