Airtac X-APMF Straight Internal Thread Through Panel Connector X-APMF601

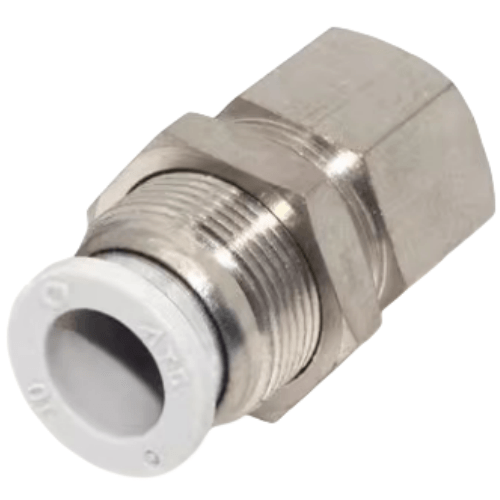

AirTAC X-APMF601 Bulkhead Fitting - Straight Through Internal Thread Specifications
- Model: X-APMF601
- Type: Female-threaded bulkhead union (straight through)
- Thread standard: PT1/8 (BSPP) dual-end female threads
- Material: Nickel-plated brass body
- Seal type: Precision-machined metal-to-metal seal with EPDM backup washer
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (non-condensing)
- Installation torque: 12-15 N·m max
- Panel thickness range: 1-3 mm (optimal for 2mm panels)
- Weight: 35g ±2g
- Dimensions: 25mm(Total L) × 12mm(Ø) × 8mm(Panel bore Ø)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Vibration resistance: ≤15Hz frequency, 1.5mm amplitude
Heavy-duty bulkhead connector designed for permanent through-panel pneumatic line installations. Features anti-vibration locking teeth on mounting collar and dual-seal security - combines metal compression sealing with elastomeric backup for leak-free performance in high-cycle applications. Compatible with ISO 1179-2 and JIS B0204 standards.
- Modular pneumatic manifold systems
- CNC machine tool lubrication lines
- Robotic arm pressure sensor interfaces
- Food processing equipment (sanitary panel mounting)
- Hydraulic gauge isolation panels
Installation protocol:
Use backup wrench on hex flats (12mm AF) during assembly.
Apply thread sealant ONLY on panel-side threads.
Torque in 3 stages: 5N·m → 10N·m → final torque.
Max 2 re-tightening cycles allowed.
Not compatible with:
- Ethylene glycol-based fluids
- High-pressure pulsation systems (>1.2MPa peak)
- Non-flat mounting surfaces (requires Ra≤3.2μm finish)
| Property | Property Value |
|---|---|
| sku | X-APMF601 |
