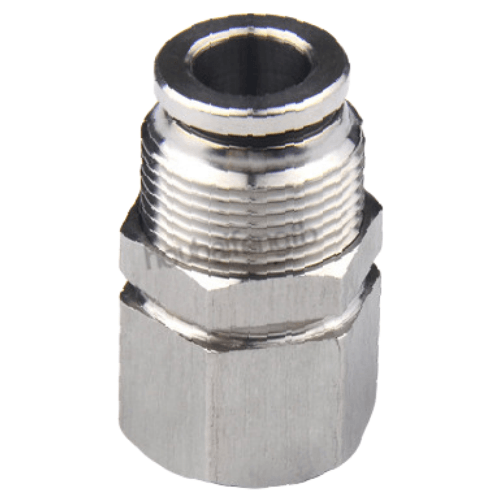

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT1004
AirTAC X-APMFT1004 Full Brass Bulkhead Threaded Straight Fitting Specifications
- Model: X-APMFT1004
- Type: Bulkhead union with internal threads (straight through)
- Material: Lead-free brass body, NBR sealing ring
- Thread standard: Metric (M5×0.8 internal threads both ends)
- Pressure rating: 0.05–1.5 MPa (7–217 PSI)
- Temperature range: -20℃ to 80℃ (NBR seals)
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Weight: 8.2±0.5g
- Dimensions: 18mm(Ø) × 15mm(H) (Bulkhead section: 10mm flange diameter)
- Installation thickness range: 1–5mm panel compatibility
- Flow coefficient (Cv): 0.12
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Heavy-duty brass bulkhead fitting with precision-machined internal threads, designed for permanent panel mounting in pneumatic systems. Features 360° rotatable collar for easy alignment during installation. The nickel-plated surface provides corrosion resistance in humid environments. Sealing lip structure prevents fluid leakage under high vibration conditions.
- Control cabinet pneumatic pass-through connections
- Industrial robot arm pneumatic interface panels
- CNC machine tool lubrication system manifolds
- Food processing equipment with washdown requirements
- Medical gas distribution panels
Installation protocol:
Use 1.5–2Nm torque during tightening. Always deburr mounting hole edges.
Apply pipe sealant on male threads only (not on bulkhead mating surfaces).
Maximum 3 reuses recommended for critical pressure systems.
