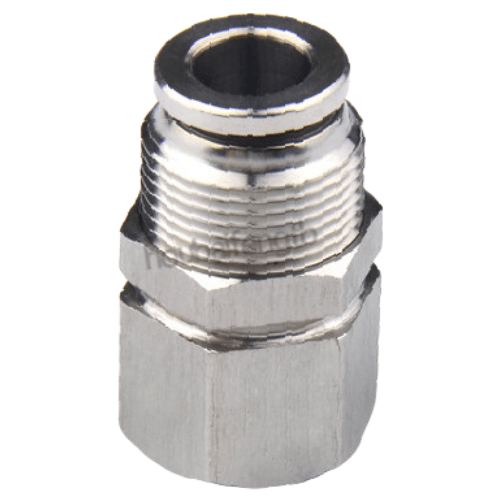

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT1202
AirTAC X-APMFT1202 Full Brass Bulkhead Union Fitting Specifications
- Model: X-APMFT1202
- Type: Straight-through bulkhead union with internal threads
- Port size: 1/8" BSPP/BSPT/NPT (tri-standard compatible)
- Thread specification: M10×1.0 external thread (mounting side)
- Material: Lead-free brass CW617N (CuZn39Pb3)
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Pressure rating: 1.5 MPa (217 PSI) maximum
- Temperature range: -20℃ to 120℃ (continuous operation)
- Seal material: NBR O-ring (oil-resistant grade)
- Torque specification: 3.5-4.2 N·m during installation
- Compatibility: Works with 4mm/6mm OD pneumatic tubing
- Certifications: RoHS compliant, ISO 9001 manufacturing
- Weight: 28.5g ±0.5g
- Dimensions: 22mm(L) × 15mm(Dia) × 12mm(Flange width)
Heavy-duty brass bulkhead fitting designed for panel mounting in pneumatic systems. Features triple-standard threading compatibility and anti-vibration flange design. The nickel-plated surface provides corrosion resistance in humid environments. Internal precision machining ensures minimal pressure drop.
- Machine tool pneumatic cabinet panel connections
- Industrial robot arm air supply passthrough
- Compressed air distribution manifolds
- Laboratory equipment pressure line interfaces
- Food processing machinery (dry applications)
Installation guide:
Use backup wrench on hex flange during assembly. Apply PTFE tape
on external threads (2 full wraps minimum). Tighten until flange
contacts panel surface, then add 1/4 turn for seal compression.
Avoid overtightening to prevent O-ring deformation.
