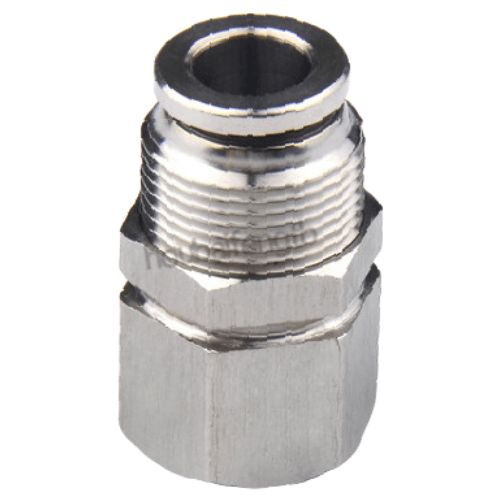

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT401
AirTAC X-APMFT401 Full Brass Bulkhead Union Elbow Specifications
- Model: X-APMFT401
- Type: Bulkhead union elbow with internal threads (straight-through)
- Material: Lead-free brass (RoHS compliant)
- Thread Standard: Metric M5×0.8 internal threads (both ends)
- Seal Type: Integrated O-ring seal (pre-lubricated)
- Pressure Rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroless nickel plating (3-5μm thickness)
- Weight: 24.5g ±0.5g
- Dimensions: 25mm(Length) × 18mm(Width) × 16mm(Height)
- Torque Limit: 1.2-1.5 N·m installation torque
- Vibration Resistance: ≤10Hz @ 2mm amplitude
Heavy-duty brass bulkhead fitting designed for through-panel pneumatic connections, featuring dual internal threads for secure mounting in control cabinets or machine frames. The corrosion-resistant nickel plating and precision-machined sealing surfaces ensure leak-free operation even in high humidity environments. Pre-installed EPDM O-rings maintain airtight integrity across thermal expansion cycles.
- Industrial automation control panel plumbing
- Compressed air distribution systems
- Vacuum line pass-through connections
- Instrumentation panel installations
- Mobile equipment pneumatic interfaces
Installation protocol:
Use two backup wrenches during assembly to prevent body distortion.
Apply thread sealant only on male threads, avoiding contamination
of the O-ring sealing surface. Maximum panel thickness: 3mm.
