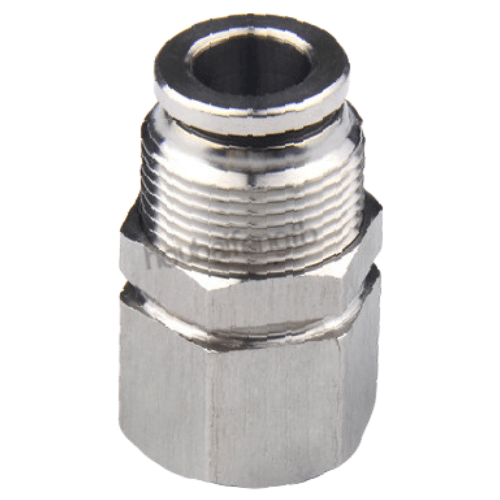

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT402
AirTAC X-APMFT402 Full Copper Bulkhead Internal Thread Straight Connector Specifications
- Model: X-APMFT402
- Type: Bulkhead straight-through connector with internal threads
- Material: Lead-free brass (CuZn39Pb3) with nickel plating
- Thread standard: G1/8 (ISO228-1 compliant)
- Seal type: Integrated O-ring (NBR material)
- Pressure rating: 0.2-1.5 MPa (29-217 PSI)
- Temperature range: -20℃ to 120℃ (continuous use)
- Port configuration: Dual female threads with partition wall
- Surface roughness: Ra ≤1.6μm (sealing surfaces)
- Weight: 28±2g
- Dimensions: 32mm(L) × 16mm(W) × 16mm(H)
- Certification: RoHS compliant, REACH SVHC-free
Heavy-duty bulkhead connector featuring corrosion-resistant nickel plating and precision-machined sealing surfaces. The dual-sealing structure combines metal-to-metal contact and elastic O-ring compression, ensuring leak-free performance in high-vibration environments. Compatible with air, water, and inert gases.
- Pneumatic cabinet pass-through connections
- Coolant line distribution in CNC machines
- Instrumentation panel installations
- Compressed air distribution blocks
- Hydraulic test bench setups
Installation note:
Apply 180-220 in-lbs torque during assembly. Use thread sealant only on non-O-ring
threads. For wall mounting, ensure minimum 2mm clearance behind partition plate.
| Property | Property Value |
|---|---|
| sku | X-APMFT402 |
