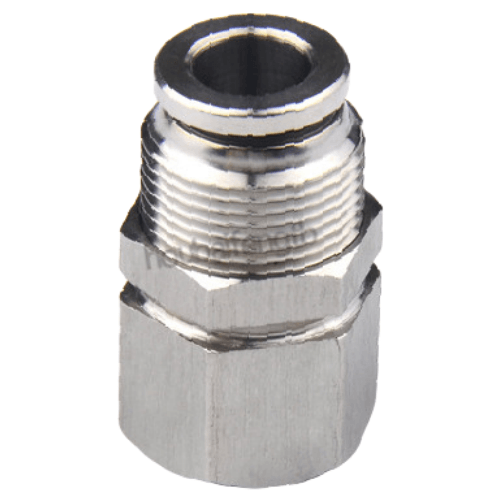

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT801
AirTAC X-APMFT801 Full Brass Bulkhead Male Thread Elbow Fitting Specifications
- Model: X-APMFT801
- Type: Bulkhead male thread straight through fitting
- Material: C3604 lead-free brass (RoHS compliant)
- Thread Standard: PT (BSPP) / NPT / G optional
- Port Size: PT1/8 (1/8" BSPP equivalent)
- Seal Type: Integrated O-ring (NBR standard)
- Pressure Range: 0.05-1.0 MPa (7-145 psi)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electroless nickel plating (3-5μm)
- Weight: 35g ±2g
- Dimensions: 30mm(L) × 20mm(W) × 20mm(H)
- Torque Limit: 1.5-2.0 N·m (13-18 lb-in)
- Vibration Resistance: ≤10Hz frequency, 1.5mm amplitude
Heavy-duty brass bulkhead connector designed for permanent installations through panels or machine walls. Features anti-corrosion nickel plating and dual sealing surfaces (thread + O-ring) for leak-proof performance in high-vibration environments. The through-hole design allows tool-free 360° rotation during final alignment.
- Pneumatic control cabinet panel mounting
- CNC machine tool lubrication line connections
- Food processing equipment with frequent washdowns
- Hydraulic manifold block port extensions
- Semiconductor fab gas distribution systems
Installation protocol:
Apply thread sealant (liquid type recommended) to male threads only.
Use backup wrench on hex flats during tightening to prevent body rotation.
Maximum 1/4 turn past hand-tight position.
| Property | Property Value |
|---|---|
| sku | X-APMFT801 |
