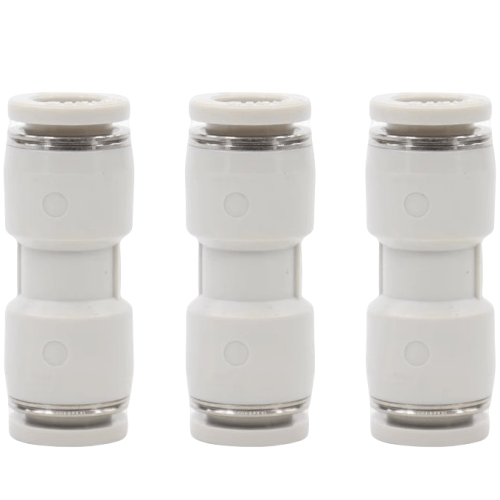

Airtac X-APU Adapter - Straight Through X-APU12
AirTAC X-APU Series Straight Through Fitting X-APU12 Technical Details
- Model Number: X-APU12
- Type: Straight-through push-in pneumatic connector
- Material: Nickel-plated brass body + PPS resin sleeve
- Thread Standard: G1/8 (BSPP) female threads both ends
- Seal Material: HNBR (Hydrogenated Nitrile) O-rings
- Operating Pressure: 0-1.0 MPa (145 psi)
- Burst Pressure: ≥3.0 MPa (435 psi)
- Temperature Range: -20℃ to 80℃ (continuous use)
- Tube Compatibility: Ø4mm (5/32") & Ø6mm (1/4") OD pneumatic tubing
- Flow Rate: 350 NL/min at 0.5 MPa
- Weight: 48g ±2g
- Dimensions: 28mm(L) × 16mm(W) × 16mm(H)
- IP Rating: IP40 (dust protected)
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Certification: RoHS compliant
High-flow pneumatic coupler with dual-tube compatibility, featuring a 360° rotatable sleeve for tool-free tube installation. The anti-vibration design maintains secure connections in dynamic environments. Nickel plating provides corrosion resistance against hydraulic oils and mild chemicals.
- Modular pneumatic circuit distribution blocks
- Robotic arm end effector air supply lines
- CNC machine tool coolant control systems
- Food packaging machine pneumatic networks
- Semiconductor wafer handling equipment
Installation guidance:
Cut tubing square with dedicated cutter, insert fully until "click" sound.
For high-vibration environments, apply thread sealant (LOCTITE 577 recommended)
on male threads. Maximum torque: 12 N·m.
| Property | Property Value |
|---|---|
| sku | X-APU12 |
