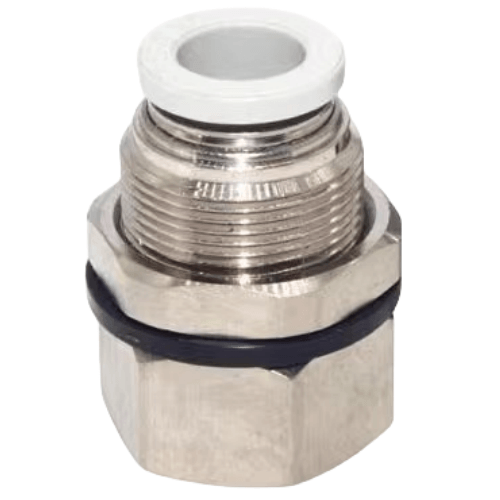

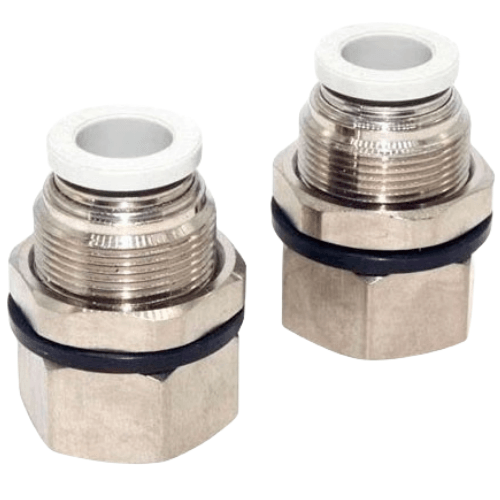

Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF1204
AirTAC X-EPMF1204 Bulkhead Fitting - Straight Through Internal Thread Specifications
- Model: X-EPMF1204
- Type: Bulkhead fitting with straight-through internal threads (female-to-female)
- Thread standard: Metric (M)
- Main thread size: M12×1.5 (mounting thread)
- Port thread size: M5×0.8 (internal thread both ends)
- Material: Brass (nickel-plated)
- Seal material: NBR (nitrile) O-ring
- Pressure range: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: HV0.3 ≥450
- Weight: 23.5±1g
- Dimensions: 22mm(Ø) × 24mm(H) (flange diameter × total height)
- Installation panel thickness: 1–5mm
- Torque specification: 1.2–1.5 N·m
- Fluid compatibility: Air, inert gases, water (non-corrosive media)
Dual-sealed bulkhead connector designed for secure panel mounting in pneumatic systems. Features through-hole design for simplified tubing routing with 360° rotatable flange for flexible orientation adjustment. Zinc-nickel composite coating provides corrosion resistance exceeding 96hrs neutral salt spray test.
- Control cabinet pneumatic pass-through connections
- Modular pneumatic manifold systems
- Robotic arm utility passthroughs
- CNC machine tool air line distribution
- Laboratory equipment pressure interface panels
- Food processing machinery (non-contact areas)
Installation protocol:
Use backup wrench on hex flats during assembly. Apply thread sealant only on stationary end.
Maximum 3 full rotations after seal contact. Perform pressure test at 1.5× operating pressure.
