Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF602
$4.36
Regular price
$11.86
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPMF602
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

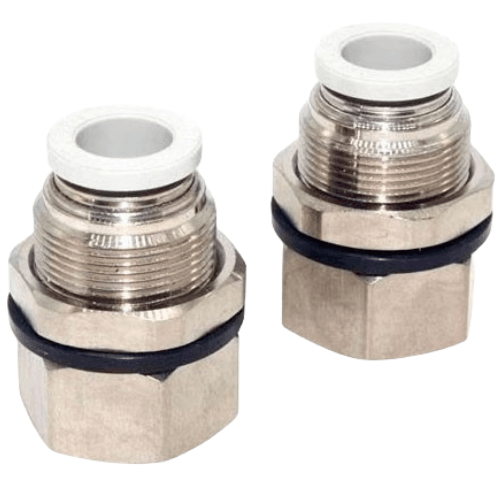

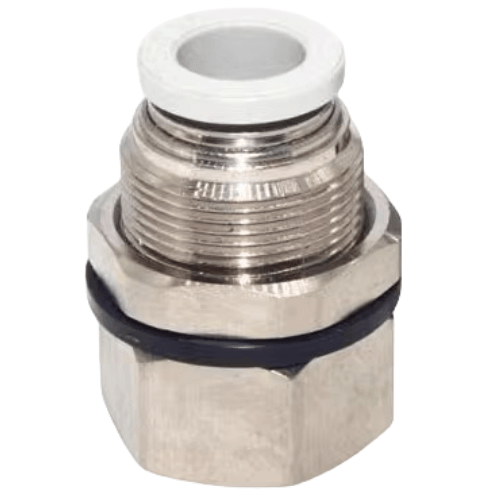

AirTAC X-EPMF602 Straight Threaded Bulkhead Fitting Specifications
- Model: X-EPMF602
- Type: Through-panel straight threaded connector (female thread both ends)
- Thread specification: M5×0.8 internal thread (both sides)
- Material: CNC-machined 6063 aluminum alloy
- Surface treatment: Electroless nickel plating (8-12μm thickness)
- Pressure rating: 1.5 MPa maximum working pressure
- Temperature range: -20℃ to 80℃ (continuous operation)
- Seal type: Integrated NBR O-ring (Shore A70±5 hardness)
- Panel thickness compatibility: 1-6mm (optimized for 3mm steel panels)
- Installation torque: Recommended 0.8-1.2 N·m with anti-seize compound
- Weight: 18.5g ±0.3g
- Dimensions: 22mm(Ø) × 16.5mm(H) (flange to flange)
- Standards compliance: ISO 15407-1, RoHS 2011/65/EU
Dual-seal bulkhead fitting designed for secure pneumatic line passthrough in panel-mounted applications. Features 360° rotatable flange for flexible orientation adjustment post-installation. The stepped sealing design prevents O-ring extrusion under pressure fluctuations.
Typical Applications:
- Control cabinet pneumatic interface panels
- Robotic arm umbilical pass-through systems
- HVAC damper actuator connections
- Semiconductor equipment wafer handling modules
- Mobile hydraulic power unit manifolds
Installation protocol:
Use back-up wrench on hex flats during assembly to prevent rotational
stress. Apply thread sealant only on stationary male threads,
never on rotating components. Perform pressure test at 1.75 MPa
for 15 minutes post-installation.
