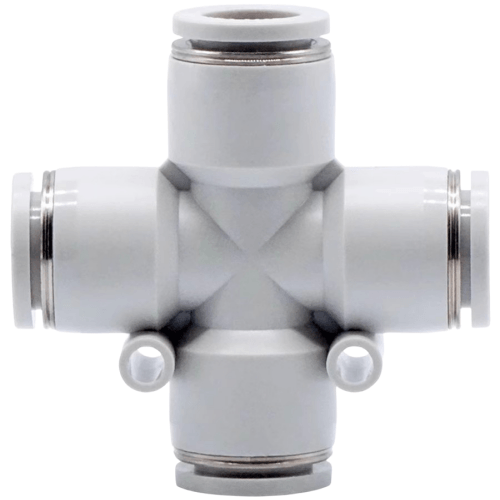

Airtac X-EPZA Cross Four-way Connector X-EPZA4
AirTAC X-EPZA4 Cross Fitting (4-Way) Technical Specifications
- Model: X-EPZA4
- Type: Pneumatic quick-connect cross fitting
- Thread standard: Metric (M5) or NPT/PT optional
- Port configuration: 4-way cross (4 × 1/8" BSPP female threads)
- Material: Brass (nickel-plated)
- Seal material: NBR (Nitrile) / FKM (Viton) optional
- Max working pressure: 1.0 MPa (145 psi)
- Min burst pressure: 3.0 MPa (435 psi)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.3
- Weight: 48g ±2g
- Dimensions: 30mm × 30mm × 30mm (cube body)
- Port-to-port distance: 18mm (center-to-center)
- Surface roughness: Ra ≤1.6μm
- Compliance: RoHS, ISO 9001
Precision-engineered cross connector for pneumatic distribution systems, featuring leak-proof tapered thread design with self-locking mechanism. The symmetrical 4-way configuration enables multi-directional airflow distribution in compact installations. Nickel plating provides corrosion resistance in humid environments (85% RH max).
- Modular pneumatic circuit branching in automation cells
- Multi-axis robotic tool changers
- Medical gas distribution panels
- Food processing pneumatic manifolds (FKM seal version)
- Semiconductor wafer handling equipment
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads. Tighten with 12-15 N·m torque using crowfoot wrench.
Avoid overtightening - sealant alone provides 70% of leak protection. Rotate fittings during pressure testing to detect micro-leaks.
