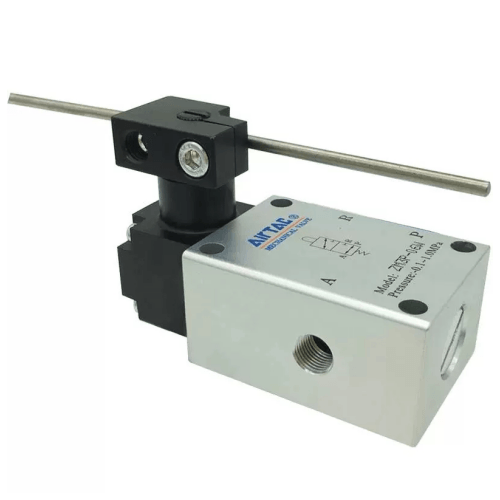

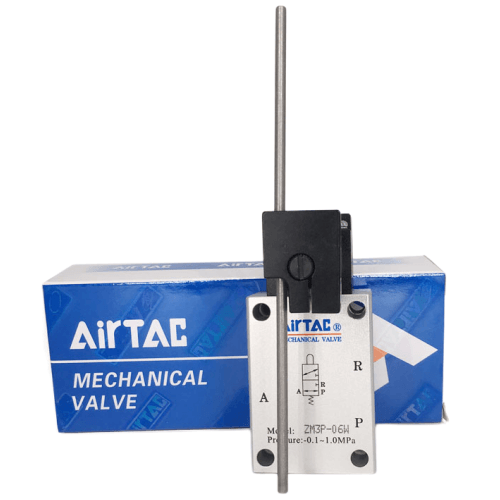

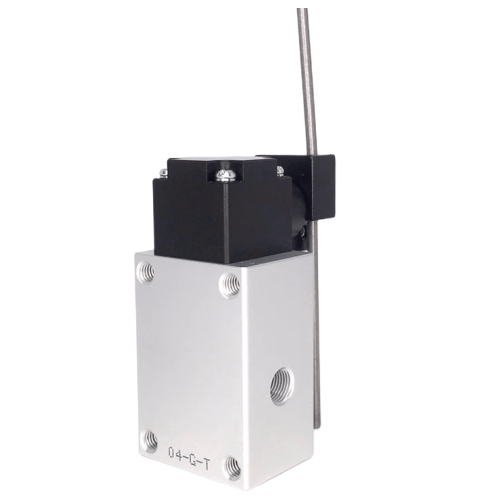

Airtac ZM3P Adjustable Stylus Mechanical Valve ZM3P06
1. Actuation direction adjustment exclusive to standard configurations (angular versions not applicable)
2. Roller mountable on lever's inner side
3. Reconfigurable lever mounting positions
4. Modular head orientation adjustment
5. Contact pin with ±5mm length adjustment range
Category: Mechanical Valves | Brand: AIRTC | Series: ZM3P
AirTAC ZM3P06 Adjustable Needle-Type Mechanical Valve Specifications
- Model: ZM3P06
- Type: 3/2-way normally closed (manual adjustment)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 psi)
- Maximum flow rate: 350 NL/min (ANR)
- Adjustment torque: 0.5–2.5 Nm
- Actuation type: Manual needle adjustment with locking mechanism
- Body material: Aluminum alloy with hard anodized finish
- Seal material: NBR/HNBR/FKM (optional)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 180g ±5g
- Dimensions: 40mm(L) × 35mm(W) × 65mm(H)
- Mounting orientation: Vertical (±15° tolerance)
- Vibration resistance: ≤10–55 Hz with 1.5mm amplitude
- Shock resistance: 100 m/s² (3 times each direction)
Precision-adjustable mechanical valve featuring a stainless steel needle plunger with 0.01mm incremental control. The dual-spring mechanism ensures stable flow regulation even under pressure fluctuations. Designed for applications requiring manual fine-tuning without electrical components. Includes anti-rotation pins for secure adjustment retention.
- Pneumatic cylinder speed calibration
- Air pressure regulator bypass systems
- Industrial automation process tuning
- Packaging line flow control stations
- Textile machinery air pressure balancing
- Printing press pneumatic dampening systems
Installation notes:1. Apply thread sealant to port connections (PTFE tape not recommended)
2. Perform initial adjustment at 0.3 MPa system pressure
3. Lock adjustment screw after calibration using included hex key
4. Requires 5μm filtered air with ISO 8573-1:2010 Class 4.4.2 air quality
| Property | Property Value |
|---|---|
| sku | ZM3P06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
