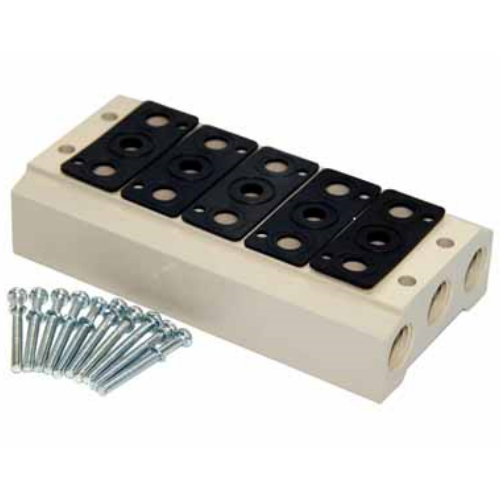

Airtac 200M Solenoid Valve Base 200M-26F
2、Integrated configuration with centralized air supply/exhaust ports and wiring channels, simplifying troubleshooting and maintenance;
3、Flexible modular design with expandable configuration, allowing seamless addition or rearrangement of connected directional control valves to meet evolving system requirements;
Category: Solenoid Valve Manifold Bases , Brand: AIRTAC , Series: 200M
AirTAC 200M-26F Valve Manifold Base Specifications
- Model: 200M-26F
- Type: Modular solenoid valve manifold base
- Port size: 1/4" NPT (G1/8 optional)
- Maximum pressure: 1.0 MPa
- Voltage compatibility: Supports all 200M series coils (DC12V-AC220V)
- Flow capacity: 750 L/min (ANR)
- Weight: 340g ±5%
- Dimensions: 76mm(L) × 32mm(W) × 58mm(H)
- Body material: Reinforced PBT + glass fiber
- Seal material: HNBR (High nitrile rubber)
- Temperature range: -5℃ to 80℃ (with intermittent peaks to 100℃)
- Port configuration: 2-position manifold with 6 mounting slots
- Surface finish: Anti-corrosion nickel plating
The 200M-26F serves as the foundation for modular pneumatic systems, featuring dual-row port design for space-efficient installations. Its multi-layer sealing structure prevents cross-port leakage even under vibration conditions. The base accepts up to 6 single valves or 3 double valves in series configurations.
- Centralized control in automated assembly lines
- Multi-axis pneumatic robotics
- Plastic injection molding machine clusters
- Textile machinery air circuit distribution
- Semiconductor wafer handling systems
Installation note:
Use M5x12mm mounting screws with 0.4-0.6Nm torque. Apply thread sealant
on port connections. For multi-unit stacks, install support brackets every
4 bases in vertical arrangements.
| Property | Property Value |
|---|---|
| sku | 200M-26F |
