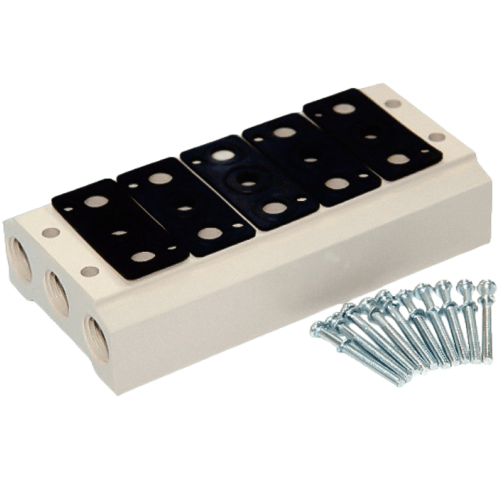

Airtac 400M Solenoid Valve Manifold Base 400M14F
$115.35
Regular price
$122.85
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
400M14F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
400M Solenoid Valve Manifold Bases
1. Enables integration of same-series directional control valves into manifold groups, achieving space-saving installation and cost-effective system solutions;
2. Features unified intake/exhaust ports and centralized wiring configuration, simplifies troubleshooting and maintenance through streamlined pneumatic circuit management;
3. Modular design with high scalability, allowing flexible configuration and expansion of connected directional control valve quantities according to application requirements;
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: 400M
Installation note:
Use torque-limited wrench (1.2-1.5Nm) for valve mounting. Apply pipe sealant only on male threads,
avoiding contamination of internal flow paths. For multi-unit connections, align manifold bridges
before tightening center bolts.
AirTAC 400M14F Manifold Base Specifications
- Model: 400M14F
- Type: Modular pneumatic manifold base
- Port configuration: 14 stations (ISO 5599-1 standard)
- Port thread size: M5, G1/8, or NPT1/8 (customizable)
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (natural color)
- Max operating pressure: 1.0 MPa
- Temperature range: -20℃ to 80℃
- Weight: 0.35 kg (without valves)
- Dimensions: 120mm(L) × 40mm(W) × 25mm(H)
- Seal compatibility: NBR, FKM, or EPDM gaskets
- Mounting style: DIN rail or direct screw mounting
- Leakage rate: ≤ 3 bubbles/min (ISO 6950-3 test)
Multi-station manifold base designed for modular valve assembly in centralized pneumatic systems. Features precision-machined air passages with T-slot design for flexible valve arrangement. Compatible with 400M series valves and fieldbus interfaces.
Typical Applications:
- Factory automation control panels
- Plastic injection molding machines
- Textile machinery pneumatic clusters
- Semiconductor manufacturing equipment
- Automated test bench manifolds
Installation note:
Use torque-limited wrench (1.2-1.5Nm) for valve mounting. Apply pipe sealant only on male threads,
avoiding contamination of internal flow paths. For multi-unit connections, align manifold bridges
before tightening center bolts.
| Property | Property Value |
|---|---|
| sku | 400M14F |
