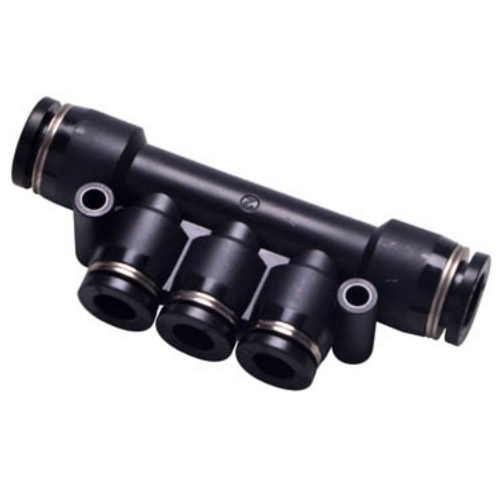

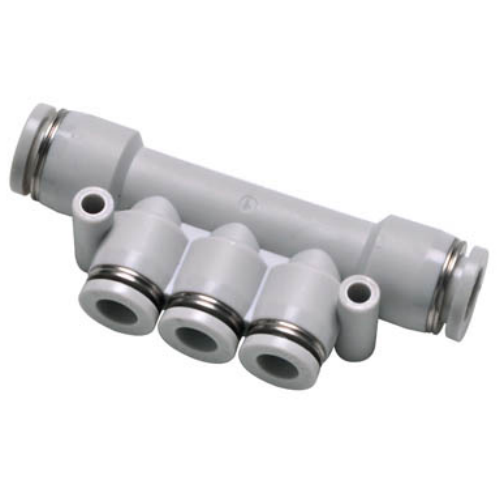

Airtac APKG 5-Port Reducer Adapter EPKG10-6
2、Available in multiple models and specifications, extensively utilized in various pneumatic systems;
3、Features superior flow performance with throughput capacity equivalent to the tubing inner diameter;
4、Simplified insertion/removal operation with secure, reliable, and durable tubing connections.
Category: Threaded Pentaport Reducing Union , Brand: AIRTC , Series: PKG
AirTAC APKG Five-Way Reducer Connector EPKG10-6 Technical Details
- Model: EPKG10-6
- Type: Pneumatic tube reducer connector (5-way)
- Primary port size: G1/8 (ISO standard)
- Secondary port sizes: 10mm & 6mm tube OD compatibility
- Thread specification: Rc1/8 (internal) with dual metric/Metric conversion
- Max working pressure: 1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Material: Nickel-plated brass body
- Seal type: Precision-molded NBR O-rings
- Surface treatment: Electrostatic epoxy coating
- Weight: 85g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 24mm(H)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Installation torque: 1.2-1.5N·m (recommended)
Multi-path flow distributor designed for complex pneumatic circuit branching, featuring asymmetrical port sizing for optimized air distribution. The dual-material construction combines corrosion resistance with thermal stability, utilizing cold-forged brass cores and anti-abrasion seals. Includes built-in check valves to prevent backflow in multi-directional setups.
- Modular pneumatic control panels requiring mixed tube sizes
- Robotic end-effector tool changers with varied actuator demands
- Packaging line diverters managing multiple cylinder groups
- Laboratory equipment needing precise pressure staging
- CNC machine tool clamping systems with hybrid circuits
Installation protocol:
Apply thread sealant only on male threads (PTFE tape recommended).
Tighten using calibrated torque wrench - over-tightening may deform
internal flow channels. Perform pressure test at 1.5× operating
pressure before system commissioning.
| Property | Property Value |
|---|---|
| sku | EPKG10-6 |
