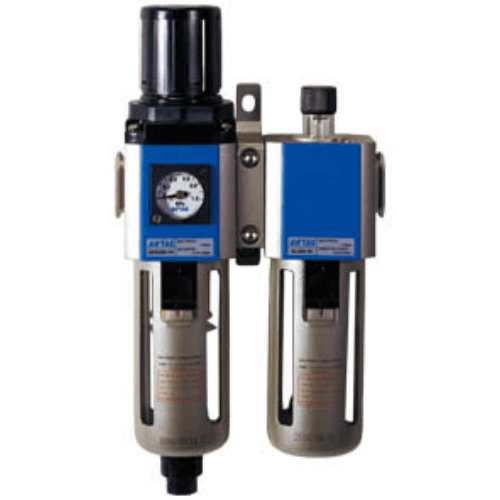

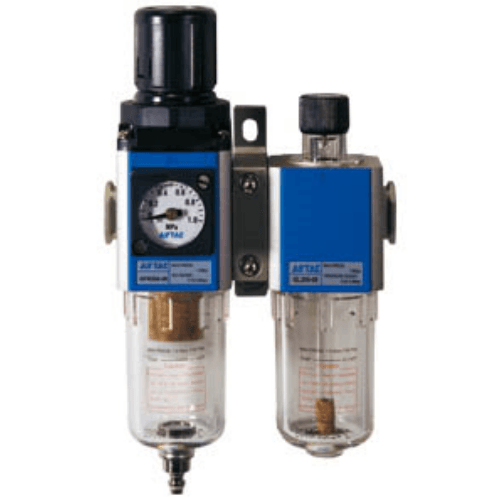

AirTAC B52-GFC40010ANW Copper-Free Air Source Treatment Unit Specifications

• Model: B52-GFC40010ANW
• Type: Integrated FRL (Filter-Regulator-Lubricator) with copper-free construction
• Port size: G1/4 (BSPP thread)
• Operating pressure: 0.05–1.0 MPa
• Filtration grade: 5μm (auto-drain version)
• Maximum flow: 4000 L/min (ANR)
• Pressure gauge range: 0–1.6 MPa
• Oil cup capacity: 200 cm³
• Body material: Aluminum alloy (copper-free process)
• Seal material: HNBR (Hydrogenated Nitrile)
• Temperature range: -5℃ to 60℃ (non-freezing conditions)
• Weight: 650g ±5% (dry, without oil)
• Dimensions: 150mm(H) × 50mm(W) × 50mm(D)
• Pressure adjustment knob torque: 0.5–1.2 N·m
• Drain type: Manual/auto drain optional (specify suffix code)

Copper-free FRL unit engineered for environments prohibiting copper contamination, featuring a zinc-nickel plated spring and phosphate coating. Integrated bypass mechanism maintains airflow during filter element replacement. Compatible with ISO 8573-1 Class 3 air quality standards.

Typical Applications:

• Semiconductor manufacturing cleanrooms
• Copper-sensitive analytical instruments
• Food-grade pneumatic systems (NSF H1 compliant when using food-grade oil)
• Pharmaceutical packaging lines
• Marine applications (salt spray resistant)

Installation protocol: Install downstream of main air supply with minimum 300mm straight pipe before unit. Lubricator should be positioned at 5–8 o'clock orientation for optimal oil mist dispersion. Replace filter element every 2,000 operational hours or when ΔP exceeds 0.1 MPa.

Critical note: Use only ISO VG32 or equivalent turbine oil. Never exceed 80% of pressure gauge range during adjustment. Drain condensate daily in high-humidity environments.
