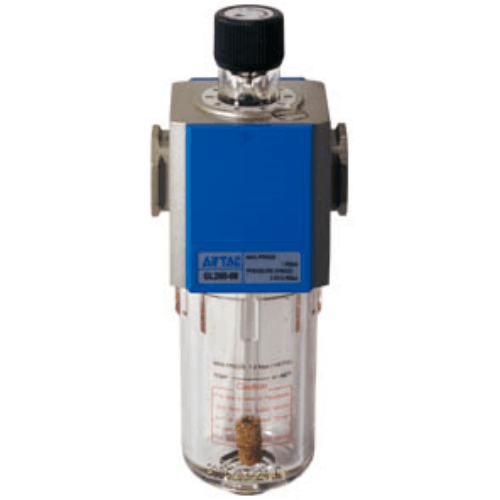

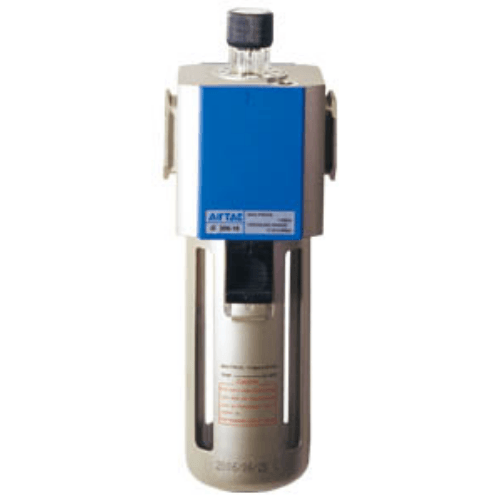

Airtac B52-GL Copper-Free Air Treatment Unit B52-GL20006J
AirTAC B52-GL Copper-Free Air Preparation Unit B52-GL20006J Technical Details
- Model Code: B52-GL20006J
- Type: Triple function unit (FRL - Filter/Regulator/Lubricator)
- Thread Standard: G1/4 (BSPP)
- Max Operating Pressure: 1.0 MPa
- Filtration Grade: 5μm (with 70% minimum efficiency)
- Flow Capacity: 1500 NL/min (at 0.7MPa)
- Pressure Gauge: 1.5" dial, glycerin-filled (0-1.6 MPa scale)
- Body Material: Aluminum alloy (ADC12) with anti-corrosion treatment
- Seal Material: HNBR (Hydrogenated Nitrile)
- Operating Temp Range: -5℃ to 80℃ (non-freezing environment)
- Weight: 520g ±10g (dry, without lubricant)
- Dimensions: 150mm(H) × 60mm(W) × 62mm(D)
- Drain Type: Manual float drain
- Pressure Adjustment: T-handle with lockable knob (±5% accuracy)
- Bowl Protection: Metal guard ring
Copper-free construction prevents contamination in sensitive pneumatic systems, featuring triple-stage air preparation with visible contamination indicator. The integrated bypass design maintains airflow during filter maintenance. Requires 10-15% derating for continuous duty cycles above 60℃.
- Semiconductor manufacturing cleanrooms
- Pharmaceutical pneumatic circuits (ISO 8573-1 Class 3 compliant)
- Marine equipment (saltwater environment resistance)
- Food processing automation (NSF H1 lubricant compatible)
- Laboratory analytical instruments
Installation protocol:
Mount vertically with arrow aligned to airflow direction. Maintain 20mm clearance below bowl for drainage access.
Prime lubricator with ISO VG32 oil before initial use. Replace filter element after 3,000 operating hours or when pressure drop exceeds 0.05MPa.
| Property | Property Value |
|---|---|
| sku | B52-GL20006J |
