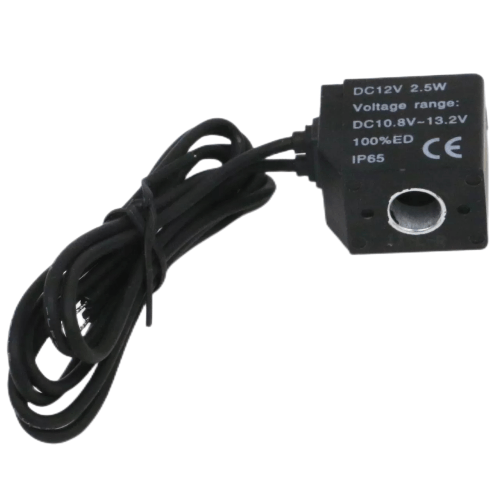

Airtac CLA Standard Solenoid Coil CLA080C
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA
AirTAC CLA Series Standard Coil CLA080C Technical Details
- Model: CLA080C
- Type: Standard solenoid coil (DC)
- Voltage options: DC12V/24V/100V (customizable)
- Power consumption: 2.2W ±10% @20℃
- Resistance: 65Ω ±10% (DC24V model)
- Duty cycle: Continuous (100% ED)
- Temperature range: -20℃ to +70℃ (no icing)
- Protection rating: IP65 (conforms to IEC60529)
- Weight: 95g ±3g (without connector)
- Dimensions: 32mm(W) × 26mm(H) × 44mm(L)
- Connector type: DIN43650 Form C (standard)
- Insulation class: Class F (155℃)
- Lead wire length: 200mm standard (shielded cable optional)
- Certification: CE, RoHS compliant
High-performance solenoid coil engineered for precise valve actuation in demanding environments. Features epoxy resin encapsulation with UV-resistant coating and vibration-damping core structure. Compatible with multiple valve series (4V, 3V, 2V) through universal mounting brackets. Electromagnetic shielding prevents interference with sensitive electronics.
- Automated production line valve clusters
- CNC machine tool pneumatic systems
- Cleanroom-compatible medical equipment
- Battery-powered mobile automation units
- Semiconductor wafer handling robots
Installation guidelines:
Maintain minimum 5mm clearance from adjacent coils to prevent thermal interference.
Use torque-controlled screwdriver (0.4-0.6Nm) for bracket mounting.
For DC24V systems, ensure voltage fluctuation remains within ±10%.
| Property | Property Value |
|---|---|
| sku | CLA080C |
| Standard Voltage | AC 110V |
| Coil Inner Diameter | 8.0MM |
