Airtac CLA Standard Solenoid Coil CLA092A
Category: Solenoid Valve Coils | Brand: AIRTAC | Series: CLA

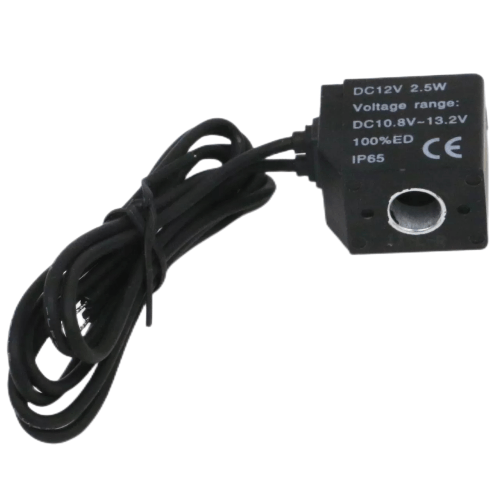

AirTAC CLA Series Standard Coil CLA092A Technical Details
- Full model designation: CLA092A
- Coil type: DC-operated solenoid coil (encapsulated)
- Compatible valve series: CLA/CLB series 1/4" valves
- Voltage options: DC12V (±10%), DC24V (±10%)
- Power consumption: 2.5W (DC12V), 3.5W (DC24V)
- Insulation class: Class F (155℃)
- Temperature range: -20℃ to +120℃ (ambient)
- Protection rating: IP65 (dust-tight & protected against water jets)
- Lead wire specification: 300mm length, 0.5mm² PVC insulated
- Terminal type: UL/CSA certified quick-connect tabs
- Duty cycle: 100% ED (continuous operation capable)
- Weight: 190g ±5g
- Dimensions: 42mm(W) × 38mm(H) × 28mm(D)
- Core tube material: Stainless steel SUS304
- Coil housing: Engineering plastic (PA66+30%GF)
High-performance industrial coil featuring dual-chamber epoxy encapsulation that prevents moisture ingress and vibration damage. The optimized magnetic circuit design ensures stable electromagnetic force output even under voltage fluctuations (±10% tolerance). Designed for direct mounting on CLA/CLB series valves with integrated DIN connector compatibility.
- Automated assembly line clamping mechanisms
- Plastic injection molding machine valve clusters
- Food processing pneumatic systems requiring washdown protection
- CNC machine tool coolant control units
- Semiconductor manufacturing vacuum/pressure switches
Installation guidelines:
Maintain minimum 15mm clearance from adjacent coils to prevent thermal interference.
Use torque-controlled screwdrivers (0.4-0.6Nm) for terminal connections.
Not compatible with AC voltage sources - verify power supply polarity before energizing.
| Property | Property Value |
|---|---|
| sku | CLA092A |
| Standard Voltage | AC220V |
| Coil Inner Diameter | 9.0mm |
