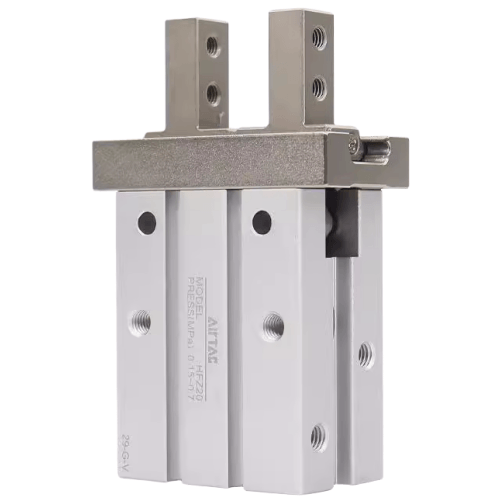

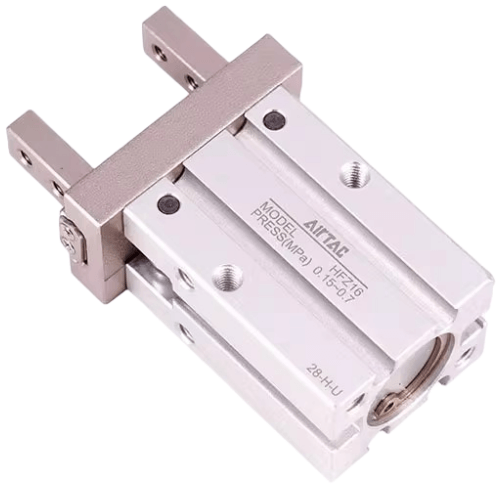

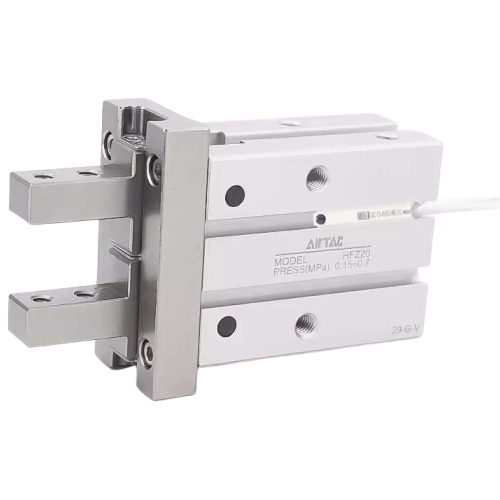

Airtac HFSZ Guided Parallel Pneumatic Gripper HFSZ40
1. Integrated linear guide design delivers exceptional rigidity and precision for stable operation;
2. Equipped with positioning dowel pins at guide base to prevent guideway-body misalignment;
3. Deepened reference centering holes on body enhance mounting accuracy and ensure consistent repositioning after repeated disassembly;
4. Customizable initial clamping position configuration available to meet diverse application scenarios.
Category: Parallel Pneumatic Grippers | Brand: AirTAC | Series: HFSZ
AirTAC HFSZ40 Guided Parallel Pneumatic Gripper Specifications
- Model: HFSZ40
- Type: Guided parallel gripper (dual-axis linear guide)
- Guide mechanism: Precision linear ball bearings
- Gripping force: 15-250N adjustable (at 0.5MPa)
- Stroke per jaw: 0-20mm (standard), customizable up to 40mm
- Operating pressure: 0.2-0.7 MPa
- Port size: M5 (1/8")
- Repeat accuracy: ±0.02mm
- Material: Aluminum alloy body, stainless steel guide rails
- Temperature range: -10℃ to 80℃
- Protection rating: IP54 (standard), IP67 optional
- Lubrication: Pre-lubricated (regreasing every 5 million cycles)
- Max operating speed: 500mm/s
- Weight: 1.45kg (with accessories)
- Dimensions: 148mm(L) × 68mm(W) × 55mm(H)
Industrial-grade parallel gripper featuring dual linear guides for ultra-stable workpiece handling. Precision-ground rails eliminate rotational play, achieving micron-level positioning repeatability. Optimized for high-cycle applications with anti-vibration design and wear-resistant slide blocks. Compatible with vacuum cups/magnetic adapters via T-slot mounting.
- CNC machine tool loading/unloading systems
- Precision bearing assembly lines
- Semiconductor wafer handling robots
- Automotive component transfer systems
- Pharmaceutical blister packaging machines
Operation note:
Maintain 0.3-0.5MPa initial pressure during installation alignment.
Apply silicone-free grease (ISO VG32 equivalent) quarterly under heavy use.
Avoid lateral impact forces exceeding 300N during operation.
| Property | Property Value |
|---|---|
| sku | HFSZ40 |
| Gripper Optional Types | Standard Type |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <40mm> |
| Stroke | 30mm |
