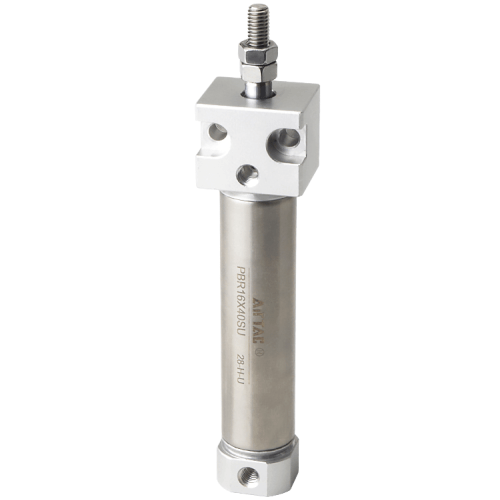

Airtac PBR Pencil Type Cylinder PBR10X125R
The AirTAC PBR Pencil Type Cylinder PBR10X125R is a double-acting pen-size mini cylinder with threaded holes in its front cover for direct mounting — no separate bracket needed. It has a Ø10mm bore, 125mm stroke, M4×0.7 front-mount thread and a SUS316L stainless barrel for corrosive settings.
- BoreØ10 mm
- Stroke125 mm
- Port sizeM5×0.8
- Front-mount threadM4×0.7
- Rod threadM4×0.7
- Acting typeDouble acting
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac PBR Pencil Type Cylinder PBR10X125R
The AirTAC PBR10X125R is a double-acting, single-rod pen-size mini cylinder that delivers 39.3 N of push force and 33 N of pull force at 0.5 MPa. It eliminates extra brackets by letting you bolt the front cover straight to your fixture using its M4x0.7 thread. The SUS316L stainless barrel provides better durability in damp or washdown environments than a plain body.
Air connects via the M5x0.8 port, and this R-version uses an axial inlet for in-line plumbing. The fixed TPU bumper at each end decelerates the piston over the last few millimeters of travel. Since the rod is only 4 mm thick, use an external guide for off-axis loads over this 125 mm stroke.
Airtac PBR Pencil Type Cylinder PBR10X125R Technical Specifications
| Model | Airtac PBR Pencil Type Cylinder PBR10X125R |
|---|---|
| Series | PBR JIS pen-size front-mount cylinder |
| Bore size | Ø10 mm |
| Rod diameter | Ø4 mm |
| Stroke | 125 mm |
| Front-mount thread | M4×0.7 |
| Port size | M5×0.8 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 0.7 MPa |
| Proof pressure | 1.2 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 50 – 800 mm/s |
| Cushion | Elastic bumper (both ends) |
| Max standard stroke | Up to 200 mm |
The front cover carries the mounting thread (M4×0.7) so the cylinder bolts directly to a fixture. Barrel is SUS316L stainless. Confirm bore, stroke and back-cover option against the product label before installation.
Theoretical Output Force (Ø10mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 39.3 N | 33.0 N |
| 0.7 MPa (max) | 55.0 N | 46.2 N |
Values are taken from the AirTAC PB/PBR thrust table. Pull acts on the smaller rod-side area, so pull force is lower than push. Size with a friction margin.
Model Code: Airtac PBR Pencil Type Cylinder PBR10X125R
| PBR | JIS pen-size front-mount double-acting mini-cylinder series. |
|---|---|
| 10 | Bore size in mm. |
| ×125 | Stroke length in mm. |
| S | Built-in magnet for magnetic-switch position sensing (omit = no magnet). |
| U / R | Back cover: U side / R axial inlet (bore-dependent). |
Mounting: direct front-cover thread (top or bottom bolts). Related PBR-family variants: PSBR (single-acting push), PTBR (single-acting pull); PB (back-mount) family also available.
Where the Airtac PBR Pencil Type Cylinder PBR10X125R Is Used
Fixture Clamp
Bolts directly through the front cover to secure small electronic housings during machining.
In-Line Diverter
Uses the axial R inlet for flat plumbing while pushing lightweight packages on a rail.
Panel-Mounted Pusher
Extends 125 mm to index components on a test board without needing a separate bracket.
Is the Airtac PBR Pencil Type Cylinder PBR10X125R the Right Cylinder?
When sizing this 10 mm bore, stepping down to a 12 mm bore yields 56.5 N of push at 0.5 MPa, while an 8 mm bore offers 25.2 N.
Confirm your ordering essentials: 10 mm bore, 125 mm stroke, no magnet, and the R axial back cover. Ensure your mounting bolts match the front-cover M4x0.7 thread with proper engagement, especially on bottom mounts, to handle the cylinder weight during operation.
Quick checklist
- ✓ Bolt directly through the front cover (M4×0.7)
- ✓ No room for a separate mounting bracket
- ✓ Force at your working pressure
- ✓ Back cover: U side or R axial inlet
- ✓ Magnet (S) for sensors?
- ✓ SUS316L barrel for damp / corrosive areas
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 0.7 MPa operating pressure.
- check Match bolt size and engagement to the front thread.
- check Take extra care with bolt length on bottom mounting.
- check Keep the load coaxial; avoid side load on the thin rod.
- check Do not dismantle the front or back cover.
Airtac PBR Pencil Type Cylinder PBR10X125R FAQ
At 0.5 MPa, this double-acting cylinder provides 39.3 N of push and 33 N of pull. At the maximum 0.7 MPa operating pressure, it yields 55 N of push and 46.2 N of pull.
The front cover features an M4x0.7 thread for direct fixture mounting, saving space and reducing part count. The SUS316L stainless barrel resists mildly corrosive and damp environments better than standard materials.
