Airtac PL1515T Terminal PL1515T-P1
$4.62
Regular price
$12.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PL1515T-P1
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

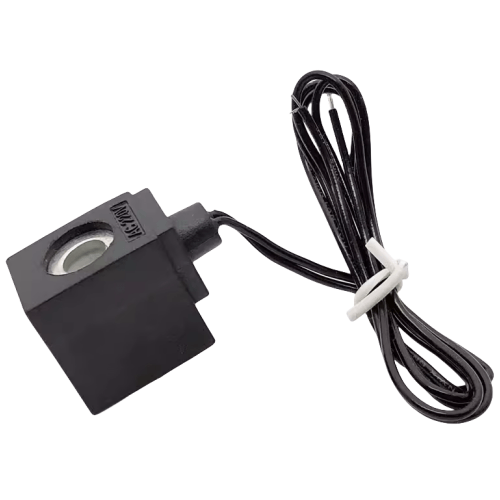

Product Category: Solenoid Valve Coil | Brand: Airtac | Series: PL1515T Terminal
Description:
The Airtac PL1515T Terminal is a high-performance electromagnetic valve coil designed for industrial automation systems. Featuring robust DIN-type terminals, it ensures secure electrical connections with vibration resistance and IP65-rated ingress protection. Compatible with 24V DC/110V AC/220V AC voltages, this coil utilizes Class F insulation and high-purity copper windings to deliver stable excitation with ≤10% power fluctuation. The UL-certified PBT (Polybutylene Terephthalate) housing provides exceptional thermal endurance (-20°C to +120°C) and chemical resistance, making it ideal for pneumatic valve actuation in harsh environments. Its compact Φ15mm form factor supports tool-free installation and complies with RoHS/CE directives.
Installation protocol:
Use torque-controlled screwdriver for uniform pressure.
Maximum stacking height: 12 units. Apply anti-oxidation paste
in high humidity environments (>85% RH).
AirTAC PL1515T-P1 Terminal Block Technical Details
- Model: PL1515T-P1 (Enhanced version of PL1515T series)
- Type: Feed-through terminal block with test point
- Pitch: 15mm horizontal/vertical spacing
- Material: Flame-retardant PA66 (UL94 V-0 rated)
- Current rating: 20A continuous @ 600V AC/DC
- Voltage rating: 800V max (IEC/EN 60947-7-1)
- Wire range: 0.5-4mm² (AWG 20-12)
- Contact resistance: ≤0.5mΩ initial
- Torque specification: 0.6-0.8Nm (screw tightening)
- Temperature range: -40℃ to +120℃
- Protection class: IP20 (finger-safe design)
- Weight: 52g ±2g per pole
- Dimensions: 35mm(L) × 15mm(W) × 33mm(H) per unit
- Mounting: DIN rail compatible (35mm rail)
High-density interconnection terminal featuring integrated test points for live circuit measurements. The transparent flip cover provides both safety and visual confirmation of connections. Gold-plated brass conductors ensure stable conductivity in vibration-prone environments.
Implementation Scenarios:
- Industrial control cabinet power distribution
- Solar inverter DC bus connections
- EV charging station wiring interfaces
- PLC I/O module extension systems
- Railway signaling equipment racks
Installation protocol:
Use torque-controlled screwdriver for uniform pressure.
Maximum stacking height: 12 units. Apply anti-oxidation paste
in high humidity environments (>85% RH).
| Property | Property Value |
|---|---|
| sku | PL1515T-P1 |
