Airtac PL1515T Terminal PL1515T-P2
$4.62
Regular price
$12.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PL1515T-P2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Solenoid Valve Coil | Brand: Airtac | Series: PL1515T Terminal
Description:

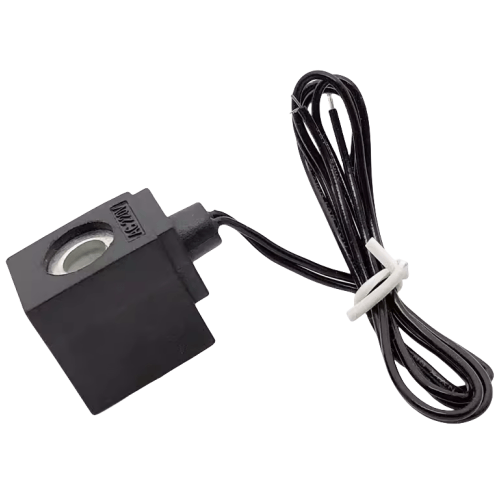

The Airtac PL1515T Terminal is a high-performance electromagnetic valve coil designed for industrial automation systems. Featuring robust DIN-type terminals, it ensures secure electrical connections with vibration resistance and IP65-rated ingress protection. Compatible with 24V DC/110V AC/220V AC voltages, this coil utilizes Class F insulation and high-purity copper windings to deliver stable excitation with ≤10% power fluctuation. The UL-certified PBT (Polybutylene Terephthalate) housing provides exceptional thermal endurance (-20°C to +120°C) and chemical resistance, making it ideal for pneumatic valve actuation in harsh environments. Its compact Φ15mm form factor supports tool-free installation and complies with RoHS/CE directives.
Installation guidelines:
Use torque-controlled screwdriver for consistent clamping force.
Maximum wire bend radius: 4× wire diameter.
For stranded wires, always use bootlace ferrules.
Maintain 3mm clearance between adjacent terminals for heat dissipation.
AirTAC PL1515T-P2 Terminal Block Technical Details
- Model: PL1515T-P2 (Dual-Level Terminal)
- Type: Screw-type feed-through terminal
- Material: PA66+Glass Fiber (UL94 V-0 flame rating)
- Rated current: 24A (IEC 60947-7-1)
- Rated voltage: 800V AC/DC
- Wire range: 0.2-4mm² (AWG24-12)
- Torque specification: 0.6-0.8Nm
- Temperature range: -40℃ to +120℃
- Contact resistance: ≤0.5mΩ
- Dielectric strength: 4000V AC/min
- Protection class: IP20 (finger-safe design)
- Certifications: CE, RoHS, UL 1059 recognized
- Weight: 24g ±0.5g
- Dimensions: 15mm(W) × 15mm(D) × 21mm(H)
High-density dual-layer terminal block with transparent protective cover, featuring captive pressure plates and copper alloy tin-plated conductors. Anti-rotation cage clamp design ensures vibration resistance (tested to 10G/10-55Hz). Compatible with DIN rail mounting (TH35-7.5).
Typical Applications:
- Industrial control cabinet power distribution
- PLC I/O module wiring interfaces
- Motor drive system junction points
- HVAC equipment power terminals
- Renewable energy system connections
Installation guidelines:
Use torque-controlled screwdriver for consistent clamping force.
Maximum wire bend radius: 4× wire diameter.
For stranded wires, always use bootlace ferrules.
Maintain 3mm clearance between adjacent terminals for heat dissipation.
| Property | Property Value |
|---|---|
| sku | PL1515T-P2 |
