Airtac PL1515T Coil Terminal PL1515T-P3
The AirTAC PL1515T-P3 is the terminal (DIN socket plug) for the CDA080 terminal-type solenoid coil, the coil with an 8.0 mm inner diameter used on the AirTAC 4M100 series valve. PL1515T-P3 suits CDA080 DC coils. It is the plug that connects the wiring to the coil; it is not a coil and not an air fitting.
Terminals for DC coils carry an indicator light with polarity: wire terminal 1 to positive and terminal 2 to negative. If they are reversed the light stays off, but the valve still operates.
Which terminal fits
| PL1515T-P1 | CDA080 AC and DC coils |
|---|---|
| PL1515T-P2 | CDA080 AC coils |
| PL1515T-P3 | CDA080 DC coils |

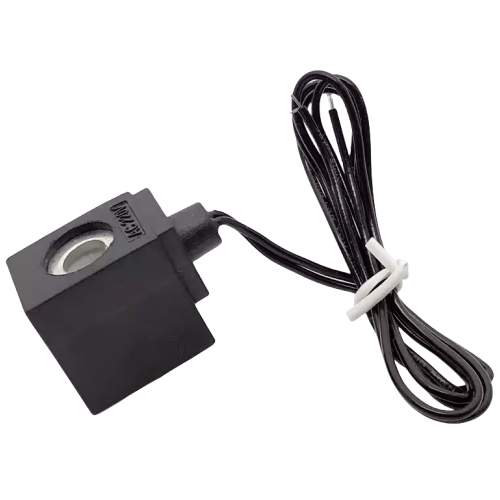

- CLA080 lead-wire coils have their own cable and take no terminal.
- CDA092 coils (3V1, 4M200, 4M300 and ESV200 to ESV600 valves) use the 4V210-005-P1, -P2 and -P3 terminals instead.
- Send the full code with your quote request and we confirm price, availability and lead time.
