AirTAC SAI Series · ISO 15552 Cylinder

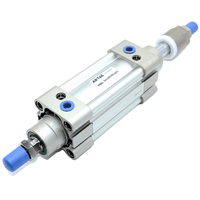

Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S

The AirTAC SAIJ100 Adjustable Cylinder SAIJ100X450-75S is a genuine double-acting ISO 15552 profile-barrel air cylinder with a Ø100mm bore and 450mm stroke, G1/2 air ports and adjustable end cushioning. Its standardized mounting interface makes it interchangeable with other ISO 15552 cylinders at the mounting interface.

  • BoreØ100 mm
  • Stroke450 mm
  • Port sizeG1/2
  • Acting typeDouble acting
  • Rod threadM20×1.5
  • CushionAdjustable, 36 mm
$260.69 $281.98Save 7% Standard model — ready in 3-5 business days to process and dispatch
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
Compare every SAIJ100 stroke, mounting and version on one page All SAIJ100 codes →
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7-8 h

About the Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S

The AirTAC SAIJ100X450-75-S is a double-acting, double-rod ISO 15552 profile cylinder equipped with a rear stroke adjuster. The integrated magnet enables position detection using CMSE reed or DMSE electronic sensors.

With a 450mm nominal stroke and a 75mm adjustment range, this model provides a usable travel window of 375-450mm. This allows you to fine-tune the retract end position at commissioning without swapping the cylinder or adding external stops. The extruded aluminum barrel includes sensor grooves on both sides, and the mounting interface supports Basic, FA, LB, TC, FTC, TCM1, and TCM2 brackets.

Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S Technical Specifications

ModelAirtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S
SeriesSAI ISO 15552 profile cylinder
Bore sizeØ100 mm
Stroke450 mm
Acting typeDouble acting
Port sizeG1/2
Rod threadM20×1.5
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 800 mm/s
CushionAdjustable, 36 mm
Max strokeUp to 1500 mm

Specifications follow the official AirTAC SAI series datasheet and ISO 15552 dimensions. Confirm against the product label before installation. Port options: G (BSPP) / NPT.

Theoretical Output Force (Ø100mm)

PressurePush forcePull force
0.5 MPa3682 N3682 N
0.7 MPa5154 N—
Max (@1.0 MPa)751 kgf

Double-rod model: the rod passes through the rear cover, so both piston faces lose rod area and push is shown at the annular-area value. Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.

Model Code: Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S

SAIISO 15552 profile-barrel cylinder series.
100Bore size in mm.
×450Stroke length in mm.
-SOptional built-in magnet for sensor position sensing.

Related SAI-family variants: SAID (double rod), SAIJ (adjustable stroke), SAIL (with lock), SAIF (with valve), BSAI (enclasp / clamp-lock), and SAI-S with built-in magnet. Rod material: carbon steel (blank) / SUS420J2 (A) / SUS304 (B); seals: TPU (blank) / Viton H / NBR N.

Where the Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S Is Used

settings_input_component

Product Changeovers

Quickly adapt the retract end position for different sized parts on the same production line using the 75mm adjustment window.

precision_manufacturing

Machine Setup

Fine-tune the 375-450mm travel limit during commissioning to achieve exact positioning without installing external mechanical stops.

Is the Airtac SAIJ100 Adjustable Cylinder SAIJ100X450-75S the Right Cylinder?

The adjustable 375-450mm travel window is ideal for product changeovers on a line, letting you dial in the exact end-stop mechanically. Because the stroke is 450mm, the 25mm rod and M20x1.5 thread still require external guiding to prevent excessive side-loading on the piston.

The rear adjuster acts as a travel stop, not a lock, so the cylinder cannot hold a load without live air. For dead-load holding, consider the SAIL or BSAI variants. To replace an ISO 15552 cylinder, match the 100mm bore, 450mm stroke, 75mm adjustment, PT G1/2 port, and -S magnet. The SAIJ omits FB, CA, CB, and CR mounts, and operates at speeds between 30-800mm/s.

Quick checklist

  • ✓ Required force at your working pressure
  • ✓ Stroke and mounting space
  • ✓ Port/thread type (PT/NPT/G)
  • ✓ Magnet (-S) for sensors?
  • ✓ Side load — consider a guided cylinder
Ask an Engineer

Installation & Maintenance Notes

  • check Use clean air filtered to 40µm or finer.
  • check Keep within 0.15 – 1.0 MPa operating pressure.
  • check Avoid side load on the piston rod.
  • check Adjust end cushion screws for smooth stops.
  • check Use correct mounting accessory (FA/FB/CA/CB/LB/TC).
  • check Installation by qualified personnel per AirTAC docs.
