AirTAC SAI Series · ISO 15552 Cylinder

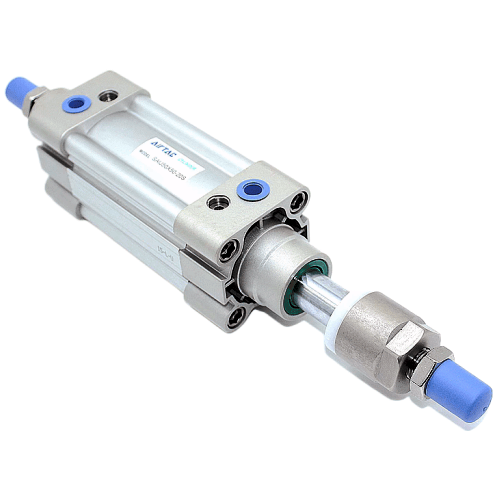

Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40

The AirTAC SAIJ100 Adjustable Cylinder SAIJ100X850-40 is a genuine double-acting ISO 15552 profile-barrel air cylinder with a Ø100mm bore and 850mm stroke, G1/2 air ports and adjustable end cushioning. Its standardized mounting interface makes it interchangeable with other ISO 15552 cylinders at the mounting interface.

  • BoreØ100 mm
  • Stroke850 mm
  • Port sizeG1/2
  • Acting typeDouble acting
  • Rod threadM20×1.5
  • CushionAdjustable, 36 mm
$386.40 $393.90Save 1% Standard model — ready in 3-5 business days to process and dispatch
Request a Quote
  • No minimum order. A single piece can be ordered.
  • Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
Compare every SAIJ100 stroke, mounting and version on one page All SAIJ100 codes →
verified Genuine AirTAC workspace_premium 1-year warranty bolt Reply in 7-8 h

About the Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40

The AirTAC SAIJ100X850-40 is a double-acting, double-rod ISO 15552 profile cylinder equipped with a rear stroke adjuster. It features a 100 mm bore and an 850 mm nominal stroke, yielding a usable travel window of 810 to 850 mm. This built-in adjuster allows you to fine-tune the retract end-position at commissioning without swapping out the entire cylinder or fabricating external stopper blocks.

This extruded aluminum profile cylinder includes variable air cushions at both ends to manage kinetic energy, but note that the rear adjuster acts strictly as a travel stop, not a locking device. It will not hold a load without continuous live air pressure. The unit omits a magnet by default, but adding the -S option enables compatibility with AirTAC CMSE reed and DMSE electronic sensors mounted in the dual-side sensor grooves.

Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40 Technical Specifications

ModelAirtac SAIJ100 Adjustable Cylinder SAIJ100X850-40
SeriesSAI ISO 15552 profile cylinder
Bore sizeØ100 mm
Stroke850 mm
Acting typeDouble acting
Port sizeG1/2
Rod threadM20×1.5
FluidAir (filtered by 40µm element)
Operating pressure0.15 – 1.0 MPa
Proof pressure1.5 MPa
Temperature-20 to +70 °C
Speed range30 – 800 mm/s
CushionAdjustable, 36 mm
Max strokeUp to 1500 mm

Specifications follow the official AirTAC SAI series datasheet and ISO 15552 dimensions. Confirm against the product label before installation. Port options: G (BSPP) / NPT.

Theoretical Output Force (Ø100mm)

PressurePush forcePull force
0.5 MPa3682 N3682 N
0.7 MPa5154 N—
Max (@1.0 MPa)751 kgf

Double-rod model: the rod passes through the rear cover, so both piston faces lose rod area and push is shown at the annular-area value. Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.

Model Code: Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40

SAIISO 15552 profile-barrel cylinder series.
100Bore size in mm.
×850Stroke length in mm.
-SOptional built-in magnet for sensor position sensing.

Related SAI-family variants: SAID (double rod), SAIJ (adjustable stroke), SAIL (with lock), SAIF (with valve), BSAI (enclasp / clamp-lock), and SAI-S with built-in magnet. Rod material: carbon steel (blank) / SUS420J2 (A) / SUS304 (B); seals: TPU (blank) / Viton H / NBR N.

Where the Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40 Is Used

settings_input_component

Product Changeovers

Dial in the 810-850 mm retract position precisely when switching between product sizes on an assembly line, avoiding the need for custom spacer blocks.

factory

Long-Stroke Conveying

Actuate large gates or pushers over 850 mm of travel, relying on the adjustable rear stopper to compensate for mechanical drift over time.

Is the Airtac SAIJ100 Adjustable Cylinder SAIJ100X850-40 the Right Cylinder?

The adjustable 810-850 mm window is ideal for product changeovers on a line where exact end-stops vary slightly between fixtures. If your process requires the load to be held mechanically without air pressure, a plain SAIJ is insufficient; you should look at the SAIL air-released lock or BSAI clamp-lock series instead.

For an exact ISO 15552 dimensional replacement, match the 100 mm bore, 850 mm stroke, 40 mm adjustment range, PT tapered port threads, and your required mounting set. SAIJ supports Basic, FA, LB, TC, FTC, TCM1, and TCM2 mounts, but omits FB, CA, CB, and CR. Because the stroke is 850 mm, the 25 mm carbon steel rod and M20x1.5 rod thread will experience leverage forces; an external guide is highly recommended to prevent excessive side-loading on the barrel.

Quick checklist

  • ✓ Required force at your working pressure
  • ✓ Stroke and mounting space
  • ✓ Port/thread type (PT/NPT/G)
  • ✓ Magnet (-S) for sensors?
  • ✓ Side load — consider a guided cylinder
Ask an Engineer
