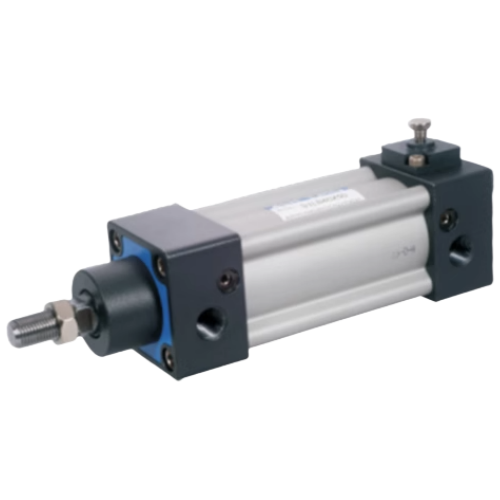

Airtac SULB Lock Cylinder SULB50X900
2. Release mechanisms: Automatic and Manual.
Category: Locking Cylinders , Brand: AirTAC , Series: SULB
AirTAC SULB50X900 Locking Cylinder Specifications
- Model: SULB50X900
- Type: Double-acting cylinder with mechanical lock
- Bore size: Ø50 mm
- Stroke: 900 mm
- Operating pressure: 0.1–0.8 MPa
- Cushioning: Adjustable pneumatic cushion
- Mounting style: MF1/MF2 flange, MP4/MP6 pivot brackets
- Tube material: Aluminum alloy (hard anodized)
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (nitrile rubber)
- Locking force: 5000N (max holding capacity)
- Ambient temperature: -20℃ to +80℃
- Protection rating: IP65 (standard), IP67 (optional)
- Sensor slots: 2x ISO 21287 compatible grooves
- Weight: 5.8 kg (excluding accessories)
- Dimensions: 950mm(L) × 72mm(W) × 72mm(H)
Industrial-grade locking cylinder featuring fail-safe mechanical brake mechanism for mid-stroke position retention. The hardened piston rod and triple-lip seal design ensure 500km+ service life under ISO 15552 standard testing. Requires 5μm filtered air with ISO VG32 lubricant (optional auto-lubricator).
- Vertical load holding in automated assembly lines
- Emergency stop position locking in material handling
- Precision fixturing for CNC machining centers
- Overhead lifting system safety brakes
- Packaging line intermediate process pause
Installation note:
Locking mechanism requires 0.3MPa minimum pressure for disengagement.
Avoid side load exceeding 10% of maximum thrust. Lubricate guide bushings
every 2,000km of cumulative travel.
| Property | Property Value |
|---|---|
| sku | SULB50X900 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <50mm> |
| Stroke | <900mm> |
| Lock Position | Rear Cover with Lock Type |
