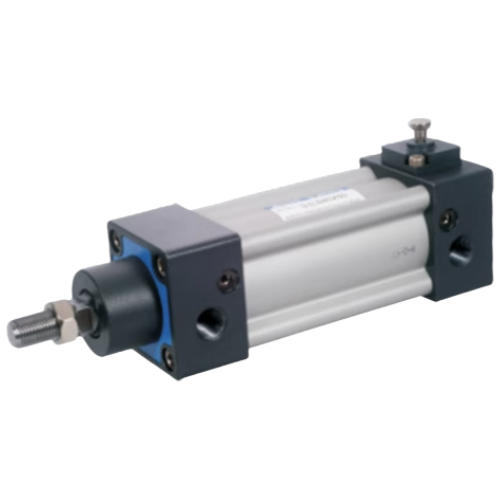

Airtac SULB Lock Cylinder SULB63X250
$128.64
Regular price
$136.14
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SULB63X250
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Locking cylinder configurations include: Front Cover Locking Type and Rear Cover Locking Type;
2. Release mechanisms: Automatic and Manual.
Category: Locking Cylinders , Brand: AirTAC , Series: SULB
Installation requirements:
Requires 5-40μm filtered lubricated air (ISO 8573-1 class 4).
Lock engagement needs minimum 0.3 MPa pressure differential.
Avoid side loads exceeding 50N. Lubricate rod weekly with ISO VG32 hydraulic oil.
2. Release mechanisms: Automatic and Manual.
Category: Locking Cylinders , Brand: AirTAC , Series: SULB
AirTAC SULB63X250 Locking Cylinder Specifications
- Model: SULB63X250
- Type: Double-acting cylinder with mechanical lock
- Bore size: 63mm
- Stroke: 250mm
- Operating pressure: 0.1–0.9 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Mounting style: Standard ISO 15552 flange (alternative foot mounting available)
- Rod material: Chrome-plated stainless steel (SUS304)
- Tube material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Locking mechanism: Spring-engaged pneumatic release
- Ambient temperature: -20℃ to 80℃
- Weight: 3.8 kg (excluding accessories)
- Dimensions: 336mm(L) × 80mm(W) × 80mm(H) (at mid-stroke position)
- Protection rating: IP65 (rod extended)
- Piston speed: 50–800 mm/s
- Lock holding force: 1,200N (at 0.5 MPa)
Heavy-duty locking cylinder featuring fail-safe position retention during power loss. Integrated mechanical lock engages automatically when de-energized, with 3-position manual override capability. Corrosion-resistant construction with wear indicator window for maintenance monitoring.
Typical Applications:
- Vertical load braking in material handling systems
- Emergency stop positioning for robotic arms
- Precision fixturing in CNC machining centers
- Safety interlocks in press machinery
- Elevator emergency braking systems
Installation requirements:
Requires 5-40μm filtered lubricated air (ISO 8573-1 class 4).
Lock engagement needs minimum 0.3 MPa pressure differential.
Avoid side loads exceeding 50N. Lubricate rod weekly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | SULB63X250 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT3/8 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | <250MM> → <250mm> |
| Lock Position | Rear Cover with Lock Type |
