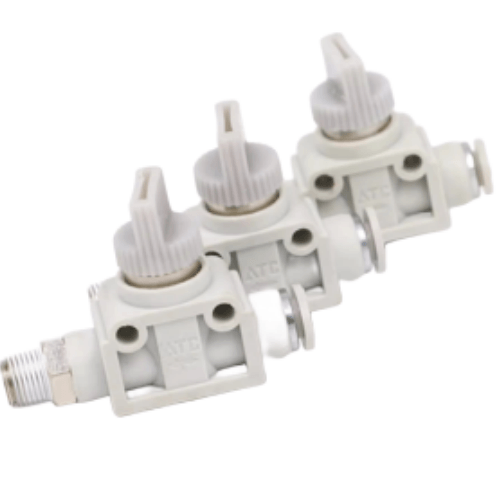

Airtac X-AHVFS Hand Valve X-AHVFS1202B
AirTAC X-AHVFS1202B Manual Valve Technical Details
- Model: X-AHVFS1202B
- Type: 2-position 3-way manual operated valve
- Port configuration: P (pressure), A (actuator), R (exhaust)
- Thread size: 1/4" NPT (G1/8 optional)
- Maximum operating pressure: 1.0 MPa
- Minimum operating pressure: 0.2 MPa
- Flow capacity: 850 L/min (ANR)
- Body material: Reinforced polymer composite
- Seal material: HNBR (Hydrogenated Nitrile) with anti-stick coating
- Operating temperature: -10℃ to 80℃
- Weight: 285g ±5g
- Dimensions: 78mm(L) × 42mm(W) × 34mm(H)
- Actuation force: ≤5N (lever operation)
- Vibration resistance: ≤50 m/s² (10-150Hz)
- Protection rating: IP67 (dust/waterproof)
Ergonomic manual override valve with positive detent positioning, designed for emergency shutdowns or manual mode operations in automated systems. Features a wear-compensated sealing system and dual-stage dust wipers for harsh environments. Compatible with ISO 15407-1 standard pneumatic systems.
- Production line emergency stop systems
- Mobile hydraulic equipment manual override
- Food processing machinery (NSF compliant version available)
- Semiconductor fab tool maintenance mode control
- Railway braking system test benches
Installation guidelines:
Mount in accessible locations with lever clearance ≥100mm.
Apply thread sealant on male ports (tapered threads only).
For vertical mounting, orient exhaust port downward.
| Property | Property Value |
|---|---|
| sku | X-AHVFS1202B |
