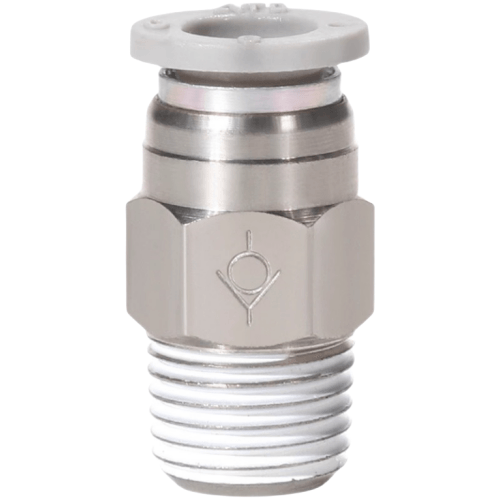

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1203
$9.21
Regular price
$16.71
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCVC1203
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCVC1203 Straight-Through One-Way Fitting Specifications
- Model: X-APCVC1203
- Type: Straight-through check valve (non-return)
- Port size: 1/8" NPT (G1/8 optional)
- Body material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR (Nitrile rubber)
- Operating pressure: 0.05–1.0 MPa
- Max working pressure: 1.5 MPa
- Temperature range: -10℃ to 80℃ (with NBR seals)
- Cracking pressure: 0.02 MPa
- Flow capacity: 200 L/min (ANR)
- Installation torque: 3.5–4.5 N·m
- Weight: 38 g ±2g
- Dimensions: 22mm(Ø) × 46mm(L)
- Surface roughness: Ra ≤3.2μm
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Maintenance-free pneumatic check valve with precision-machined internal components for reliable one-way flow control. Features integrated O-ring groove design and anti-vibration structure. Rated for 1 million cycles minimum.
Typical Applications:
- Air compressor outlet protection systems
- Vacuum circuit isolation in packaging machinery
- Pneumatic cylinder exhaust port backflow prevention
- Medical gas line pressure retention
- Robotic arm pneumatic brake circuits
Installation guidelines:
Arrow direction must align with airflow. Apply PTFE tape on male threads only.
Avoid overtightening - use torque wrench for critical applications.
Not suitable for liquid media or aggressive gases.
| Property | Property Value |
|---|---|
| sku | X-APCVC1203 |
