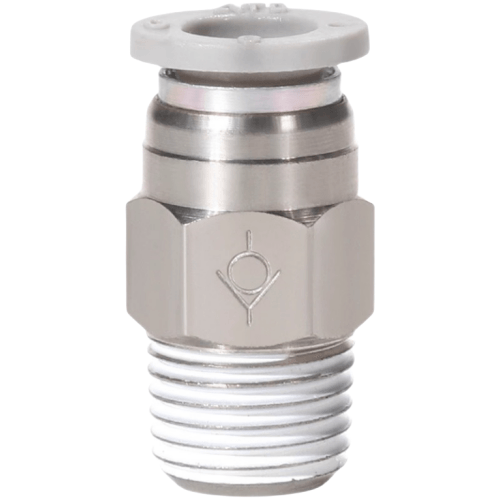

Airtac X-APCVC Straight Check Valve Adapter X-APCVC1204
AirTAC X-APCVC Straight Through One-Way Joint (X-APCVC1204) Technical Specifications
- Model: X-APCVC1204
- Type: Straight-through non-return (check valve) configuration
- Thread standard: NPT 1/4" (BSPP/BSPT optional)
- Material: Brass body with CRN surface treatment
- Seal material: HNBR/FKM (Nitrile/Fluorine rubber options)
- Operating pressure: 0.2-1.0 MPa (2-10 bar)
- Proof pressure: 1.5 MPa
- Cracking pressure: 0.02 MPa (minimum)
- Temperature range: -20℃ to 80℃ (dry air required above 0℃)
- Flow coefficient (Cv): 1.8
- Weight: 52g ±2g
- Dimensions: 30mm(L) × Φ12mm(body) × Φ16mm(hexagon)
- Vibration resistance: ≤55Hz @ 1.5mm amplitude
- Leakage rate: ≤3 bubbles/min (ISO 6952 test standard)
High-flow unidirectional valve featuring zero-leak design with precision-machined poppet mechanism. The chrome-plated brass construction ensures corrosion resistance in humid environments. Unique cone spring design maintains consistent cracking pressure across temperature variations (-20℃~80℃). Compatible with ISO 8573-1:2010 Class 3 compressed air (max 5mg/m³ oil content).
- Pneumatic cylinder exhaust locking circuits
- Vacuum generator inlet protection systems
- Modular pneumatic manifold assemblies
- Air compressor outlet safety loops
- Robotic gripper pressure maintenance units
Maintenance protocol:
Install with flow arrow aligned to system direction. Apply 5-7Nm torque during assembly.
For vertical mounting, position spring chamber downward. Replace seals every 500,000 cycles
in continuous operation environments.
