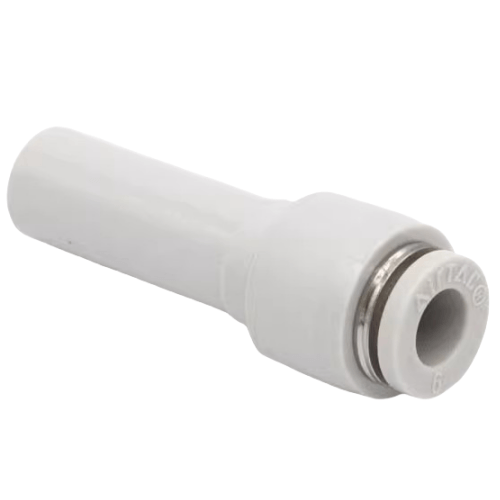

Airtac X-APGJ Reducer Straight Connector X-APGJ64
AirTAC X-APGJ64 Reducing Straight Connector Plug Technical Details
- Model: X-APGJ64
- Type: Threaded reducing straight connector (male to male)
- Material: Brass with nickel plating (stainless steel optional)
- Thread Standards: G1/4 (Female) → G1/8 (Male)
- Pressure Rating: 0-1.0 MPa (145 psi)
- Temperature Range: -5℃ to 60℃
- Seal Material: NBR (Nitrile) rubber
- Weight: 52g ±0.5g
- Dimensions: 24mm(L) × 18mm(W) × 18mm(H)
- Surface Finish: Electrolytic polishing (Ra ≤0.8μm)
- Torque Resistance: ≤25 N·m
- Certifications: RoHS compliant, ISO 1179-1 standard
Precision-machined reducing connector designed for high-pressure pneumatic systems requiring size transition in confined spaces. Features leak-proof metal-to-metal sealing with secondary NBR backup seal. Anti-vibration knurling ensures tool-free hand tightening while maintaining 98% flow efficiency through tapered bore design.
- Pneumatic cylinder port adapters in robotics
- Compressed air line reducers for CNC machinery
- Vacuum system fittings in packaging equipment
- Instrumentation gas line connections
- Modular pneumatic circuit assembly
Installation protocol:
Apply 2-3 drops of pneumatic sealant on male threads before assembly.
Tighten 1.25 turns past finger-tight position using 12-15 N·m torque wrench.
Perform pressure test at 1.5x operating pressure for 5 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | X-APGJ64 |
