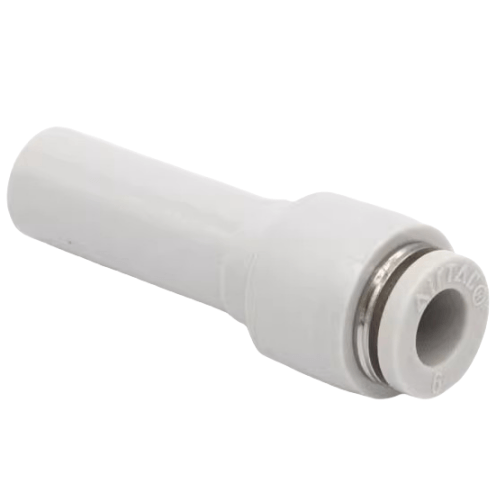

Airtac X-APGJ Reducer Straight Connector X-APGJ84
$3.12
Regular price
$10.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APGJ84
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APGJ84 Reducer Straight Plug Specifications
- Model: X-APGJ84
- Type: Metric thread reducer straight plug (male to female)
- Material: Surface-hardened stainless steel (HRC 35-40)
- Primary thread: M8×1.0 external
- Secondary thread: M5×0.8 internal
- Pressure rating: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Seal type: Dual O-ring design (NBR material)
- Surface treatment: Black oxide coating
- Weight: 12.5g ±0.3g
- Dimensions: 23mm(Total L) × 13mm(Hex W) × 8mm(Min. wall thickness)
- Thread engagement depth: 6mm (M8 end), 4mm (M5 end)
- Proof pressure: 3.0 MPa (30 bar)
- Vibration resistance: ≤10-55Hz, 1.5mm amplitude
Precision-machined adapter for pneumatic systems requiring stepped diameter connections in confined spaces. Features anti-vibration grooves and wear-resistant coating, compatible with ISO 15407-1 standards. The tapered seat design prevents particle accumulation.
Typical Applications:
- Modular pneumatic manifold conversions
- Robotic arm tooling air line transitions
- CNC machine coolant line adapters
- Medical gas equipment interfaces
- Automated packaging machine sensor ports
Installation protocol:
Apply 2-3Nm torque using 13mm crowfoot wrench. Lubricate threads with
PTFE paste for high-vibration environments. Perform pressure test at
1.8MPa before full operation.
Service life:
50,000+ cycles when used within specified pressure range. Replace if
axial play exceeds 0.2mm. Clean with isopropyl alcohol - avoid
petroleum-based solvents.
| Property | Property Value |
|---|---|
| sku | X-APGJ84 |
