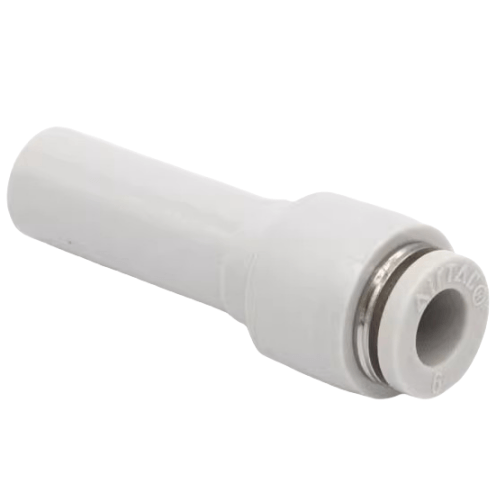

Airtac X-APGJ Reducer Straight Connector X-APGJ86
$3.22
Regular price
$10.72
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APGJ86
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APGJ86 Reducer Straight Connector Plug Technical Details
- Model: X-APGJ86
- Type: Metric thread reducer straight connector (male to female)
- Material: High-strength stainless steel (AISI 303)
- Thread Specifications: M8×1.0 (male) to M6×1.0 (female)
- Pressure Rating: 0.2-1.5 MPa (29-218 PSI)
- Temperature Range: -20℃ to 120℃ (-4°F to 248°F)
- Surface Treatment: Electropolished with anti-corrosion coating
- Seal Type: Integrated EPDM O-ring (FDA compliant)
- Weight: 18.5g ±0.3g
- Dimensions: 22mm(Length) × 12mm(Outer Diameter) × 8mm(Reduced Diameter)
- Torque Resistance: ≤35 N·m
- Vibration Resistance: 5-2000Hz, 20g acceleration
Precision-machined stepped connector enabling secure transitions between different pneumatic line sizes. Features dual-stage sealing with leak-proof design (tested to 1.8x rated pressure), ideal for vacuum/pressure hybrid systems. Hexagonal base allows wrench tightening (8mm AF).
Primary Applications:
- Industrial robot end-effector pneumatic circuits
- Medical device compressed air line reductions
- Semiconductor fab equipment gas distribution
- Packaging machine tooling plate connections
- CNC machine air blast nozzle adapters
Installation protocol:
Apply thread sealant only on male ends (except final 1.5 threads).
Tighten to 12-15 N·m torque using calibrated wrench.
Perform pressure test at 0.5MPa before full operation.
| Property | Property Value |
|---|---|
| sku | X-APGJ86 |
