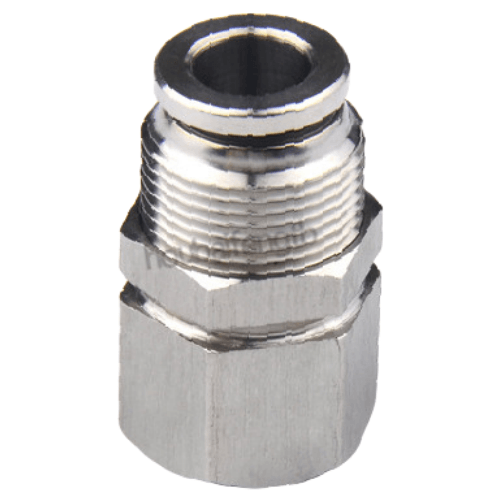

Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT602
AirTAC X-APMFT602 Full Copper Partition Female Threaded Straight Fitting Specifications
- Model: X-APMFT602
- Type: Straight through bulkhead fitting with female threads
- Material: Lead-free brass (CW617N)
- Thread Standard: Metric (M5×0.8 female both ends)
- Seal Type: Integrated copper partition with O-ring groove
- Pressure Rating: 0.3-1.5 MPa (43.5-217.5 PSI)
- Temperature Range: -20℃ to 150℃
- Surface Treatment: Electroplated nickel (3-5μm thickness)
- Weight: 18.5±0.3g
- Dimensions: 22mm(Length) × 12mm(Width) × 12mm(Height)
- Hex Size: 8mm wrench flat
- Flow Coefficient (Cv): 0.12
- Compliance: RoHS 2.0 compliant
Precision-machined bulkhead connector featuring corrosion-resistant nickel plating and vacuum-tight sealing. The copper partition provides enhanced structural stability for panel mounting applications. Designed with double O-ring grooves (NBR seals included) for leak-proof connections in high-vibration environments.
- Pneumatic control panel interface connections
- Vacuum system manifold junctions
- CNC machine tool air line distribution
- Semiconductor equipment gas line routing
- Laboratory instrument pressure port adapters
Installation guidelines:
Apply thread sealant (LOCTITE 5452 recommended) on male threads before assembly.
Tighten to 1.2-1.5 N·m torque using calibrated torque wrench.
Maximum panel thickness: 5mm. Avoid cross-threading during installation.
