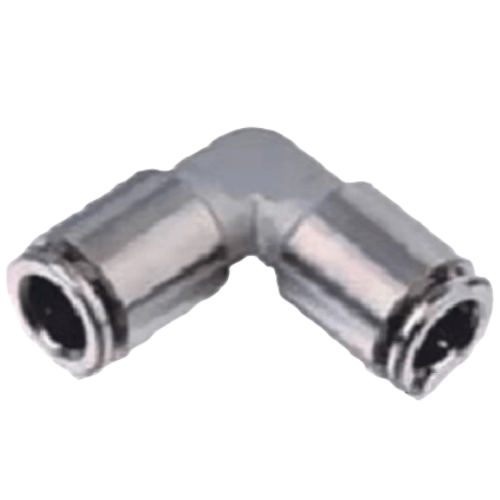

Airtac X-APVT Connector - Full Copper Elbow X-APVT10
AirTAC X-APVT10 Brass Elbow Fitting Specifications
- Model: X-APVT10
- Type: 90° male elbow connector (brass construction)
- Thread standard: BSPP (G-thread)
- Port size: PT1/8 (1/8" pipe thread)
- Material: Lead-free brass CW617N
- Surface treatment: Electroless nickel plating (5-8μm)
- Seal type: Integrated O-ring (NBR material)
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃
- Thread engagement: 5 full turns minimum
- Weight: 14.7g ±0.5g
- Dimensions: 20mm(L) × 16mm(W) × 18mm(H)
- Torque limit: 1.2-1.5 N·m (installation)
- Compliance: RoHS 2.0 compliant
Precision-engineered brass elbow for pneumatic systems, featuring a corrosion-resistant nickel finish and maintenance-free sealing. The compact 90° design enables space-saving plumbing configurations while maintaining smooth airflow (CV value: 0.014). Compatible with all standard 1/8" tubing systems.
- Pneumatic valve manifold interconnections
- Air compressor line redirection
- Robotic arm pneumatic circuit bending
- Medical gas equipment plumbing
- Packaging machine air line management
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Hand-tighten first, then apply final 1/4 turn with wrench.
Avoid overtightening to prevent O-ring deformation.
Maximum misalignment tolerance: 3°.
