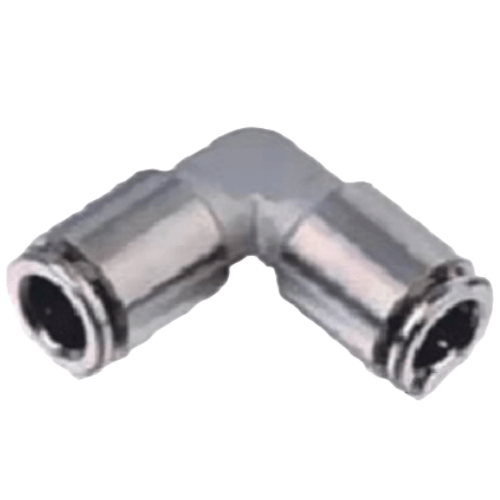

Airtac X-APVT Connector - Full Copper Elbow X-APVT4
AirTAC X-APVT4 All-Copper Elbow Fitting Technical Details
- Model: X-APVT4
- Type: 90° compression elbow fitting
- Material: C3604 lead-free brass (RoHS compliant)
- Thread specification: G1/8 (BSPP parallel thread)
- Through bore: Ø4mm (precise 4.0±0.1mm inner diameter)
- Working pressure: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 120℃ (continuous operation)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Seal material: NBR (standard)/FKM optional
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Weight: 45g ±2g (including packaging)
- Dimensions: 25mm(L) × 14mm(W) × 28mm(H)
- Tube compatibility: 4mm OD polyurethane/nylon tubing
- Certification: ISO 8434-1/DIN 2353 compliant
- Pressure drop: ≤0.02 MPa at 5 L/min flow rate
- Protection rating: IP40 (dust protected)
Precision-engineered brass elbow connector featuring cold-forged construction for uniform grain structure. The electroless nickel coating provides enhanced corrosion resistance exceeding 96hrs in salt spray tests (ASTM B117). Optimized flow path reduces turbulent losses by 18% compared to standard elbows.
- Pneumatic circuit branch line connections
- Tool changer interfaces on CNC machines
- Medical gas line routing systems
- Robotic arm end effector plumbing
- Semiconductor fab equipment air lines
- Food processing pneumatic controls (FDA-grade seals optional)
Installation protocol:
Hand-tighten initially, then apply 1.25-1.75 N·m torque using crowfoot wrench.
Maximum 3 reuses recommended. Apply thread sealant only on male threads,
avoiding contact with sealing surfaces. Perform pressure test at 1.5x
operating pressure for 5 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | X-APVT4 |
