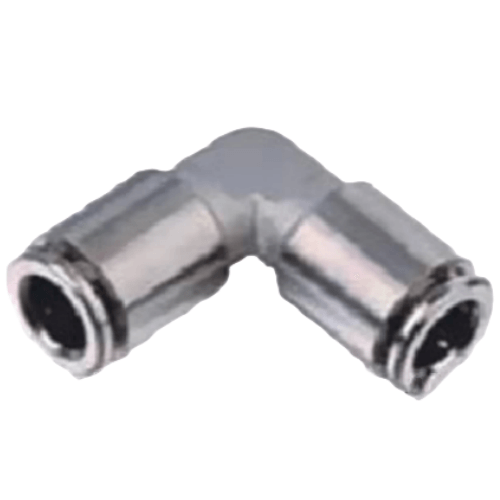

Airtac X-APVT Connector - Full Copper Elbow X-APVT6
AirTAC X-APVT6 Full Brass Elbow Fitting Specifications
- Model: X-APVT6
- Type: Pneumatic elbow connector (90° bend)
- Material: Lead-free brass (CuZn39Pb3)
- Thread Standard: Metric (M5×0.8) & PT1/8 dual-thread design
- Temperature Range: -20°C to 120°C
- Pressure Rating: 0.1 - 1.0 MPa
- Seal Material: NBR (Nitrile) rubber
- Surface Treatment: Electroplated nickel coating (3-5μm)
- Weight: 18.5g ±0.5g
- Dimensions: 24mm(L) × 16mm(W) × 16mm(H)
- Flow Coefficient: Cv 0.15
- RoHS Compliance: Yes
Precision-machined brass elbow connector with dual-thread compatibility, featuring corrosion-resistant nickel plating for extended service life. The 90° angled design optimizes space utilization in compact pneumatic systems while maintaining laminar airflow. Includes integrated NBR seal for leak-proof connections.
- Pneumatic valve manifold assemblies
- Robotic end-effector air supply lines
- Medical device pneumatic circuits
- Packaging machine tooling fixtures
- Semiconductor manufacturing equipment
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads. Tighten to 1.2-1.5 N·m torque limit.
Avoid overtightening to prevent brass deformation. Compatible with ISO 1179-2 standards.
| Property | Property Value |
|---|---|
| sku | X-APVT6 |
