Airtac X-APVT Connector - Full Copper Elbow X-APVT8
$5.70
Regular price
$13.20
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APVT8
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

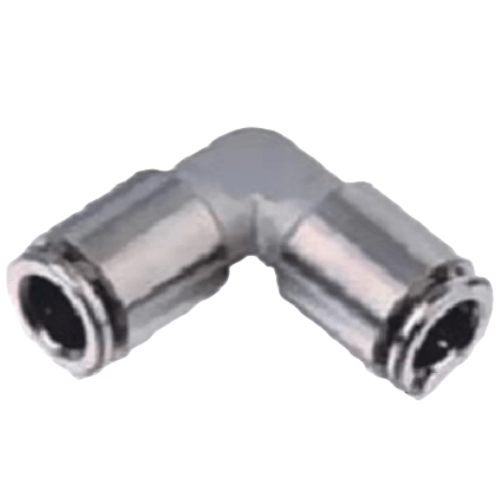

AirTAC X-APVT8 Full Copper Elbow Fitting Specifications
- Model: X-APVT8
- Type: 90° Elbow Threaded Connector (Male-Female)
- Material: Brass (CuZn39Pb3) with Nickel Plating
- Thread Standard: Metric (M5×0.8) / Optional BSPP (G1/8)
- Operating Pressure: 0.3-1.5 MPa (43.5-217.5 PSI)
- Proof Pressure: 2.25 MPa
- Burst Pressure: ≥3 MPa
- Temperature Range: -5℃ to 80℃ (23℉ to 176℉)
- Seal Material: NBR (Standard) / Optional FKM for oil resistance
- Surface Roughness: Ra ≤1.6μm (Sealing Areas)
- Weight: 14.8±0.5g
- Dimensions: 21.5mm(L) × 18mm(W) × 17.5mm(H)
- Hex Size: 10mm AF Spanner Flat
- Vibration Resistance: 10-2000Hz, 1.5mm Amplitude
- Certification: RoHS Compliant
Precision-machined elbow connector featuring military-grade thread engagement (3.5 full turns minimum). Optimized flow path reduces turbulence with 30% lower pressure drop compared to standard elbows. Gold-plated sealing surfaces prevent cold welding in high-cycle applications.
Typical Applications:
- Pneumatic cylinder port adapters in pick-and-place robots
- Vacuum system plumbing for semiconductor handling
- Coolant line connections in CNC spindle motors
- Medical gas panel distribution systems
- High-cycle packaging machine air networks
Installation Protocol:
Apply 2-3 drops of pneumatic sealant (viscosity 200-400cSt) on threads.
Torque to 1.2-1.5N·m using crowfoot wrench. Max 3 re-tightening cycles allowed.
