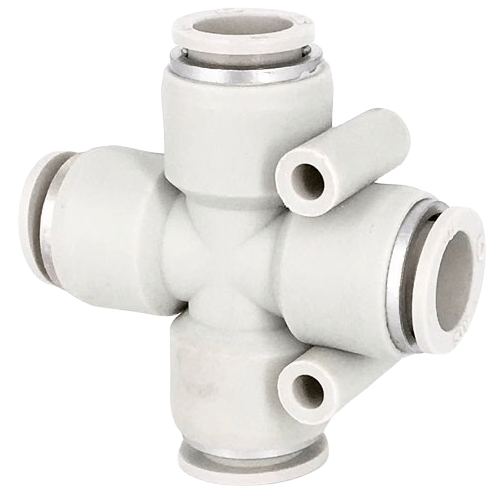

Airtac X-APZA Cross Four-Way Connector X-APZA12
$4.15
Regular price
$11.65
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APZA12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APZA12 Cross Four-Way Fitting Specifications
- Model: X-APZA12
- Type: Cross-shaped pneumatic manifold connector
- Thread standard: PT1/8 (BSPP)
- Material: Brass with nickel-plated surface
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃
- Weight: 48g ±2g
- Dimensions: 28mm(W) × 28mm(D) × 28mm(H)
- Seal type: Embedded O-ring (NBR material)
- Port configuration: 4 female threaded ports
- Surface roughness: Ra ≤1.6μm
- Pressure drop: ≤0.02 MPa at 0.5 MPa input
- Compliance: RoHS 2.0 compliant
Precision-machined cross connector with leak-proof design, featuring uniform flow distribution across all ports. The hexagonal body allows tool tightening while the compact form factor saves panel space. Compatible with pneumatic tubing OD 4mm-8mm when used with adapters.
Typical Applications:
- Pneumatic circuit branching in automation cells
- Air distribution in packaging machinery manifolds
- Multi-axis robot end effector air supply
- Laboratory pneumatic control systems
- Compressed air distribution in CNC machines
Installation note:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 12-15 N·m torque.
Avoid aligning ports vertically downward to prevent debris accumulation.
Test at 0.8 MPa for 10 mins before full-pressure operation.
| Property | Property Value |
|---|---|
| sku | X-APZA12 |
