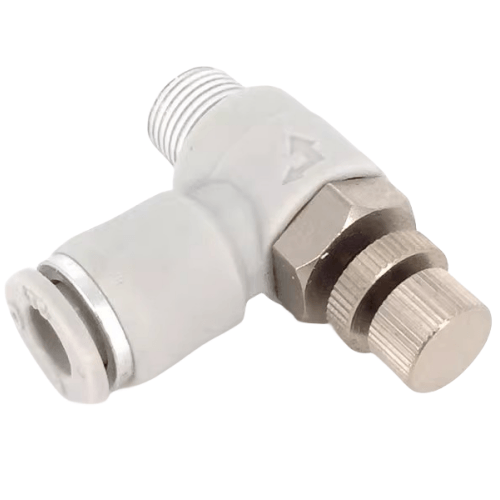

Airtac X-ASL Adapter (L-Type) Restricted Port X-ASL4M6
$5.86
Regular price
$13.36
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASL4M6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASL(L Type) Restricted Entry Fitting X-ASL4M6 Technical Details
- Model: X-ASL4M6 (L-shaped restricted entry series)
- Thread specification: M6×1.0 male thread
- Material: Lead-free brass CW617N (RoHS compliant)
- Surface treatment: Electro-less nickel plating (5-8μm thickness)
- Seal material: NBR (Nitrile) O-ring
- Pressure rating: 0.05-1.0 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Installation torque: 0.8-1.2 N·m (recommended with torque wrench)
- Tube compatibility: Φ4mm polyurethane/nylon tubing
- Weight: 9.2±0.5g
- Dimensions: 18.5mm(L) × 16mm(W) × 22.3mm(H)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- IP rating: IP40 (protected against tool access)
Precision L-shaped pneumatic connector featuring anti-disengagement design with 30° rotation limit. The tapered thread design ensures leak-free connections in confined spaces. Special groove structure prevents tube slippage under pulsation. Compatible with automatic assembly systems.
Industrial Applications:
- Robotic end-effector pneumatic circuits
- CNC machine tool cooling line junctions
- Semiconductor wafer handling equipment
- Compact medical ventilator manifolds
- Electric vehicle battery cooling systems
Installation protocol:
Apply 2-3 drops of silicone-free lubricant (ISO VG10 grade) on threads before assembly.
Use backup wrench on hex base during tightening to prevent body deformation.
Max re-use cycles: 5 times with seal replacement.
| Property | Property Value |
|---|---|
| sku | X-ASL4M6 |
