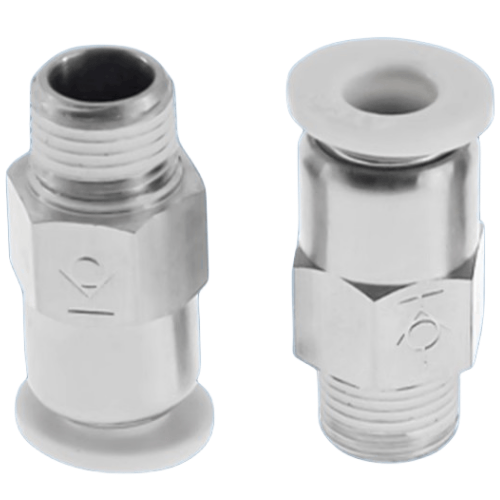

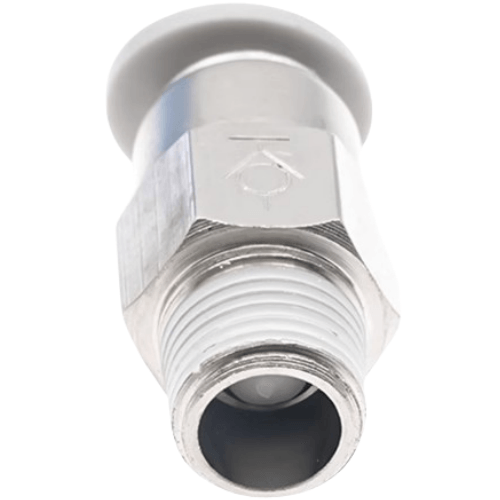

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC401
$4.04
Regular price
$11.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASPC401
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASPC401 Straight Through Quick Connector Specifications
- Model: X-ASPC401
- Type: Straight-through push-to-connect fitting
- Body material: Nickel-plated brass (corrosion resistant)
- Seal material: NBR (Nitrile) rubber
- Applicable tubing: PU/Nylon (OD 4mm)
- Pressure range: 0.2-1.0 MPa (29-145 PSI)
- Temperature range: -5℃ to 60℃ (operating fluid)
- Thread specification: M5×0.8 (dual-end male threads)
- Flow coefficient (Cv): 0.45
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Certifications: RoHS compliant, CE marked
- Weight: 15g ±0.5g
- Dimensions: 30mm(L) × 16mm(W) × 16mm(H)
Precision-engineered quick-disconnect coupling featuring one-hand push-in tube connection with integrated collet grip. The dual O-ring design ensures leak-free performance in dynamic pneumatic systems. Mirror-polished internal channels minimize pressure drop (ΔP ≤0.02 MPa @ max flow).
Typical Applications:
- Modular pneumatic assembly stations
- Robotic end-effector tool changers
- CNC machine coolant line connections
- Portable medical oxygen systems
- Automated packaging line air circuits
Installation protocol:
Insert tubing until audible "click" engagement. For maintenance:
Depress stainless steel release collar while gently pulling tubing.
Maximum recommended vibration: 2.5G @ 50Hz. Compatible with ISO 12151-2 standards.
| Property | Property Value |
|---|---|
| sku | X-ASPC401 |
