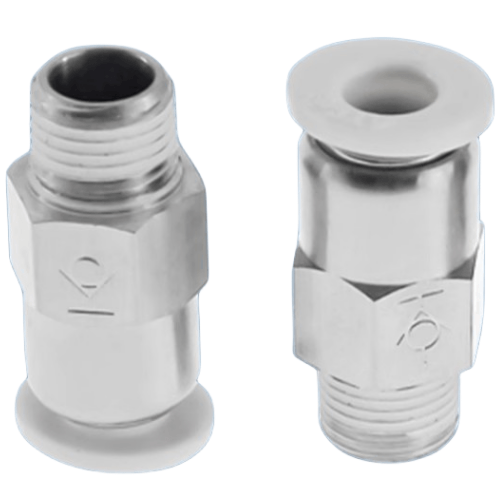

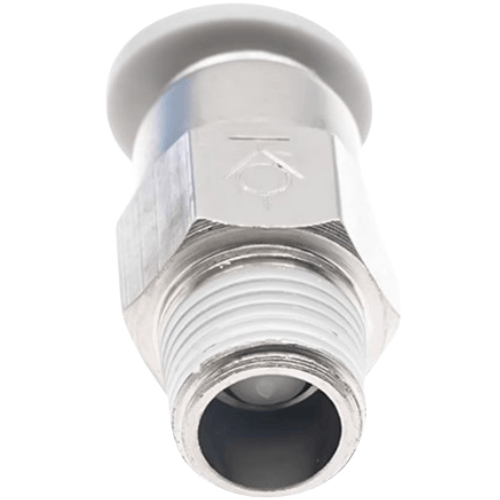

Airtac X-ASPC Connector - Straight Through Quick Plug X-ASPC602
$5.28
Regular price
$12.78
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASPC602
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASPC602 Straight-Through Quick Connector Specifications
- Model: X-ASPC602
- Type: Straight-through push-to-connect fitting (pneumatic)
- Thread standard: PT1/4 (G1/4 optional)
- Material: Brass with nickel plating (stainless steel sleeve)
- Seal material: HNBR (Hydrogenated Nitrile Rubber)
- Operating pressure: 0.2-1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 60℃
- Flow rate: 350 NL/min @0.5 MPa
- Tube compatibility: Φ6mm OD polyurethane/nylon tubing
- Insertion force: ≤30 N
- Extraction force: 50-80 N (with tube lock)
- Weight: 52g ±2g
- Dimensions: 30mm(L) × 12mm(Diameter) × 20mm(Hex width)
- Vibration resistance: 10-2000Hz, 15G acceleration
- IP rating: IP54 (dust and splash resistant)
High-flow quick connector with positive locking mechanism, featuring a dual-stage sealing system (O-ring + metal-to-metal contact). The anti-vibration design maintains secure connections in dynamic environments. Compatible with ISO 14743 standards for pneumatic quick couplings.
Typical Applications:
- Robotic arm pneumatic tool changers
- CNC machine tool air supply lines
- Packaging line actuator connections
- Semiconductor cleanroom equipment
- Mobile hydraulic service ports
Installation protocol:
Cut tubing square with dedicated cutter, insert fully until audible click.
Test pull-out resistance (>50N) after installation. Replace seals every
5,000 cycles or 2 years (whichever comes first).
| Property | Property Value |
|---|---|
| sku | X-ASPC602 |
